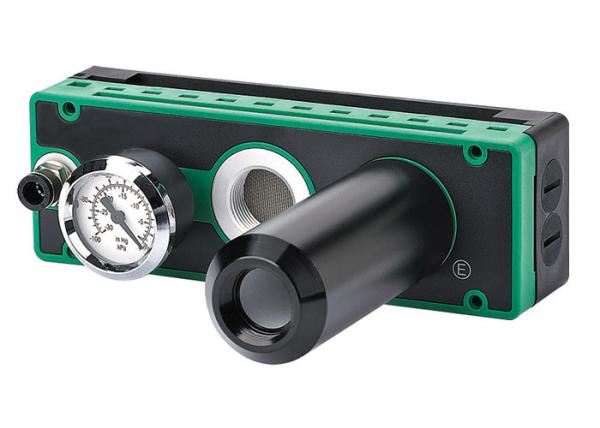

0.4Mpa- 0.6 Mpa Multistage Energy Saving Vacuum Pump , Vacuum
Generator
VTS Series Multistage type vacuum pump operating pressure
0.4MPa~0.6MPa,maximum vacuum degree -75Kpa with Nitrile Rubber/FKM seal material
Quick Detail:
*VTS Series multistage type vacuum pump
*Compact design,light in weight,flexible application
*Big flow rate,high vacuum degree
*Working air supply pressure 0.45MPa~0.6MPa
*Medium vacuum level up to -75kpa
*Exhaust noise,50~60dBA
*Nitrile Rubber/FKM seals avaiable for option
*Energy-saving pattern available
*Silencer,mounting bracket,push-in fitting as accessories available
*Stable design,long service life
*Up to three layers can be stacked
How to order:
| VTS | 301 | D | N | A | EK |
Series :
VTS Type
(-75kPa) | Size:
301
302
303
304
305
306 | Connection port size | Sealing Material:
N: Nitrile Rubber
V: FKM | Check Valve:
Blank: Without check valve
A: With check valve | Control device:
EK:Energy saving system |
Connection port size
Connection port size | Air supply port | Vacuum port | Exhaust port | Suitable type |
| D | G1/4" | G3/4" | G3/4" | VTS301,302,303,304 |
| D | G1/4" | G1" | G1" | VTS305,306 |
Dimension:
Specifications:
| Model | Air supply pressure
(bar) | Maximum Vacuum
(-Kpa) | Maximum Vacuum Flow
NL/Min | Maximum Air consumption
NL/Min | Hose diameter(mm) |
| Air supply port P | Vacuum port V |
| VTS301 | 4.5~6.0 | 75 | 365 | 100~130 | 8 | 25 |
| VTS302 | 715 | 201~250 | 8 | 25 |
| VTS303 | 974 | 290~400 | 10 | 32 |
| VTS304 | 1368 | 370~510 | 10 | 32 |
| VTS305 | 1470 | 520~640 | 12 | 32 |
| VTS306 | 1540 | 610~750 | 12 | 32 |
Vacuum flow (NL/min)at different vacuum levels(-kPa)
| Model | Air supply pressure (bar) | Air consumption (NL/min) | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | Maximum vacuum (-kPa) |
| VTS301 | 5.0 | 110 | 361 | 183 | 118 | 78 | 46 | 34 | 26 | 22 | -75 |
| VTS302 | 5.0 | 224 | 718 | 363 | 242 | 154 | 86 | 64 | 50 | 36 |
| VTS303 | 5.0 | 340 | 974 | 550 | 367 | 243 | 142 | 121 | 77 | 58 |
| VTS304 | 5.0 | 460 | 1368 | 730 | 489 | 317 | 181 | 139 | 121 | 78 |
| VTS305 | 5.0 | 580 | 1470 | 815 | 577 | 399 | 224 | 184 | 135 | 97 |
| VTS306 | 5.0 | 700 | 1610 | 927 | 692 | 472 | 270 | 211 | 161 | 121 |
Pumping time (S/L)at different vacuum levels(-kPa)
| Model | Air supply pressure (bar) | Air consumption( NL/min) | 10 | 20 | 30 | 40 | 50 | 60 | 70 | Maximum vacuum (-kPa) |
| VTS301 | 5.0 | 130 | 0.020 | 0.060 | 0.12 | 0.22 | 0.36 | 0.58 | 0.90 | -75 |
| VTS302 | 5.0 | 260 | 0.010 | 0.030 | 0.06 | 0.12 | 0.19 | 0.28 | 0.44 |
| VTS303 | 5.0 | 390 | 0.090 | 0.020 | 0.04 | 0.08 | 0.12 | 0.19 | 0.38 |
| VTS304 | 5.0 | 520 | 0.006 | 0.010 | 0.03 | 0.05 | 0.1 | 0.14 | 0.22 |
| VTS305 | 5.0 | 651 | 0.005 | 0.013 | 0.03 | 0.04 | 0.07 | 0.11 | 0.18 |
| VTS306 | 5.0 | 780 | 0.004 | 0.015 | 0.022 | 0.04 | 0.06 | 0.10 | 0.15 |
Applications:
VTS Series multistage type vacuum pump used widely in automotive
industrial,chemical industrial,glass manufacturing,automation
system mechanical,electronics,packing system, printing, plastic, manipulator automation system etc
Vacuum component,vacuum pump,universal type vacuum pump
