4.5Bar - 5.0 Bar Multistage Energy Saving Vacuum Pump , Vacuum
Generator
TM Series Multistage type vacuum pump operating pressure
0.45MPa~0.5MPa,maximum vacuum degree -94Kpa with Nitrile Rubber/FKM seal material
Quick Detail:
*TM Series multistage type vacuum pump
*Compact design,light in weight,flexible application
*Big flow rate,high vacuum degree
*Working air supply pressure 0.45MPa~0.5MPa
*Medium vacuum level up to -94kpa
*Exhaust noise,50~60dBA
*Nitrile Rubber/FKM seals avaiable for option
*Energy-saving pattern available
*Silencer,mounting bracket,push-in fitting as accessories available
*Stable design,long service life
*Up to three layers can be stacked
How to order:
| VTM | 301 | D | N | A | EK |
Series :
VTM- Basic Type
(-94kPa) | Size:
301
302
303
304
305
306 | Connection port size | Sealing Material:
N: Nitrile Rubber
V: FKM | Check Valve:
Blank: Without check valve
A: With check valve | Control device:
EK:Energy saving system |
Connection port size
Connection port size | Air supply port | Vacuum port | Exhaust port | Suitable type |
| D | G1/4" | G3/4" | G3/4" | VTM301,302,303,304 |
| D | G1/4" | G1" | G1" | VTM305,306 |

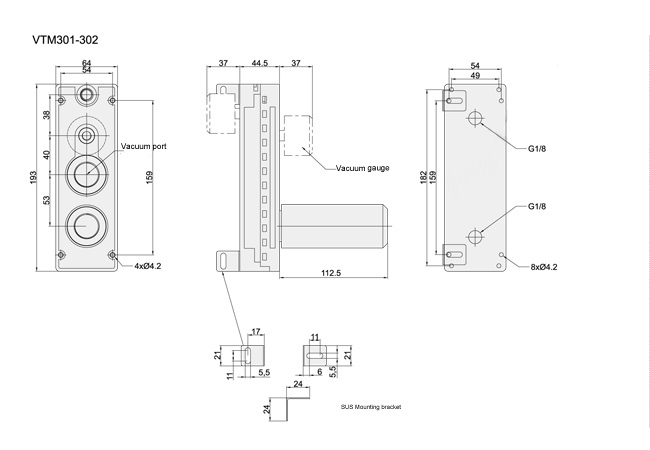

Dimension:
Specifications:
| Model | Air supply pressure
(bar) | Maximum Vacuum
(-Kpa) | Maximum Vacuum Flow
NL/Min | Maximum Air consumption
NL/Min | Hose diameter(mm) |
| Air supply port P | Vacuum port V |
| VTM301 | 4.5~5.0 | 94 | 370 | 120~140 | 8 | 25 |
| VTM302 | 720 | 220~270 | 8 | 25 |
| VTM303 | 980 | 310~420 | 10 | 32 |
| VTM304 | 1370 | 400~540 | 10 | 32 |
| VTM305 | 1485 | 550~675 | 12 | 32 |
| VTM306 | 1550 | 650~810 | 12 | 32 |
Vacuum flow (NL/min)at different vacuum levels(-kPa)
| Model | Air supply pressure (bar) | Air consumption (NL/min) | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 |
| VTM301 | 5.0 | 135 | 366 | 178 | 115 | 73 | 42 | 31 | 23 | 18 | 8 | 2 |
| VTM302 | 5.0 | 265 | 715 | 360 | 238 | 150 | 82 | 62 | 47 | 35 | 19 | 3.5 |
| VTM303 | 5.0 | 415 | 970 | 540 | 357 | 233 | 132 | 101 | 74 | 55 | 31 | 5.5 |
| VTM304 | 5.0 | 536 | 1376 | 720 | 479 | 307 | 171 | 134 | 101 | 71 | 42 | 7 |
| VTM305 | 5.0 | 668 | 1450 | 805 | 567 | 390 | 214 | 174 | 125 | 92 | 51 | 9 |
| VTM306 | 5.0 | 810 | 1600 | 907 | 682 | 462 | 260 | 201 | 151 | 111 | 61 | 10 |
Pumping time (S/L)at different vacuum levels(-kPa)
| Model | Air supply pressure (bar) | Air consumption ( NL/min) | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | Maximum vacuum (-kPa) |
| VTM301 | 5.0 | 135 | 0.022 | 0.067 | 0.13 | 0.24 | 0.39 | 0.61 | 0.90 | 1.35 | 2.40 | -94 |
| VTM302 | 5.0 | 265 | 0.009 | 0.035 | 0.068 | 0.13 | 0.21 | 0.31 | 0.46 | 0.68 | 1.20 |
| VTM303 | 5.0 | 415 | 0.008 | 0.025 | 0.045 | 0.089 | 0.13 | 0.21 | 0.31 | 0.45 | 0.78 |
| VTM304 | 5.0 | 536 | 0.007 | 0.019 | 0.035 | 0.055 | 0.18 | 0.16 | 0.26 | 0.35 | 0.58 |
| VTM305 | 5.0 | 668 | 0.006 | 0.014 | 0.032 | 0.044 | 0.075 | 0.12 | 0.19 | 0.27 | 0.46 |
| VTM306 | 5.0 | 810 | 0.004 | 0.016 | 0.023 | 0.041 | 0.069 | 0.12 | 0.16 | 0.22 | 0.38 |
Applications:
TM Series multistage type vacuum pump used widely in automotive
industrial,chemical industrial,glass manufacturing,automation
system mechanical,electronics,packing system, printing, plastic, manipulator automation system etc
