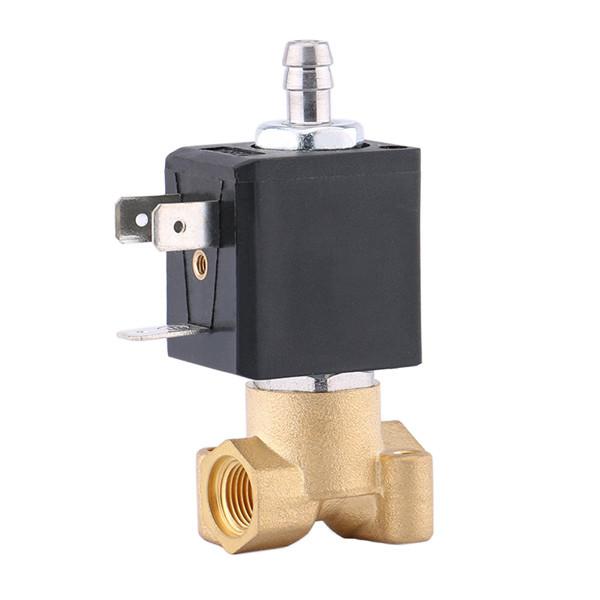

Three Way Steam Brass Stainless Steel Solenoid Valve For Coffee Maker Espresso Machine

Product Categories

FENGHUA FLUID AUTOMATIC CONTROL CO.,LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Ask Lasest Price
Brand Name :	FLUIDAC or OEM
Model Number :	STM3-01-11
Price :	Negotiable
Payment Terms :	TT Advance/30% deposit,70% by copy Bill oflading,Western Union,MoneyGram,Paypal
Supply Ability :	5000PCS per Month
Delivery Time :	Within 20 days after receiving payment or deposit

Add to Cart

STEM3 Series Steam Brass Solenoid Valve for Coffee Maker Espresso Making Machine

Orifice size 1.0mm,1.2mm 1.5mm,2.0mm,2.5mm STEM small body series solenoid valve direct acting body material Stainless steel or brass

Specification:

Models Parameters	STM3 SERIES
Port Size GNPTPT	1/8 , 1/4
Orifice (mm)	1.0	1.2	1.5		2.0		2.5		2.5
CV Value	0.05	0.06	0.07		0.13		0.17		0.17
Nominal Pressure(PN)	0~25Bar	0~20Bar	0~16Bar		0~15Bar		0~12Bar		0~2.5Bar
Material B(S)	H59-1 Brass(SUS304)
Seal Material	N (NBR)			E (EPDM)				V (VITON)
Fluid Temp.	-20～80℃			-20～140℃				-20～169℃
Working Medium	Air,water,Nature Gas			Hot Water				Oil,Hot Water,Steam
Voltage	AC220V					DC24V				DC12V
Coil Power	9VA					8.0W				9W
Electric Current	0.0409A					0.333A				0.75A
Leakage	Zero Leakage
Ambient Temp.	-20～50℃
Coil Model	BA11H(BA12H)
Electricity Connecting	Din Connector/Wire out-leading
IP Rating	IP65
Seal Properties	Solenoid valve working under 1.1 times of the nominal pressure of air or water,No leakage appearance
Pressure resistance	Solenoid valve working under 1.5 times of the nominal pressure of water,No visible leakage and damage.
Coil allowable Temperature Rising	H (≤180℃)
Life Cycles	≥800000 Times

Dimension:
