    2 Inch Adjustable Piston Air Regulator Pressure 0.85MPa Pneumatic Air Source Treatment Qty Series

    Ask Lasest Price
    Brand Name : FLUIDAC or OEM
    Model Number : QTY-20
    Certification : ISO9001
    Price : USD3--
    Payment Terms : TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal
    Supply Ability : 20000 Pieces Per month
    Delivery Time : Within 20 days after receiving payment or deposit
    • Product Details
    • Company Profile

    2 Inch Adjustable Piston Air Regulator Pressure 0.85MPa Pneumatic Air Source Treatment Qty Series


    Pipe Line Pneumatic Adjustable Piston Air Regulator,Air SourceTreatment Port Size G2"

    Q Series pipe line air regulator,air filter and Air lubricator Large port size up to 2” e.g QTY-50 with G2” Port size heavy duty


    Quick Detail:


    * Aluminum die-casting body material

    * Working pattern with piston type

    * Port size G1/4”,G3/8”,G1/2”,G3/4”,G1”,G1-1/4”,G1-1/2”,G2”

    * Pressure range adjustable 0.05~0.85MPa

    * Input air pressure 1.0MPa

    * Filter fineness 50Micron standard

    * Pipe line application,Heavy duty

    * Stable design,pressure-resistance,long service life cycle


    Specifications:

    Working MediumCompressed Air
    Working Pressure0.05~0.85MPa
    Temperature Ambient5~60℃
    Working PatternPiston Type
    Body MaterialAluminum Alloy
    Air Inlet/Outlet Port sizeG1/4"~G 2"
    OverflowWith Overflow


    Features:

    1,Working Medium:Air source

    2,Body material:Aluminum die-casting

    3,Filter bowl material:PC

    4,Filter element material:Brass or Plastic

    5,Seal Material:NBR

    6,Working pressure:0.05~0.85MPa

    7,Working Temperature:5~60℃

    8,Filtration fineness:50µ

    9,Mounting type: Pipe-line mounting

    10,Regulator type:Piston type

    11,Port size:G1/4”,G3/8”,G1/2”,G3/4”,G1”,G1-1/4”,G1-1/2”,G2”


    Models

    QTY25
    Series Pressure RegulatorDN SIZE
    08:G1/4" 10:G3/8" 15:G1/2" 20:G3/4" 25:G1" 32:G1-1/4" 40:G1-1/2" 50:G2"

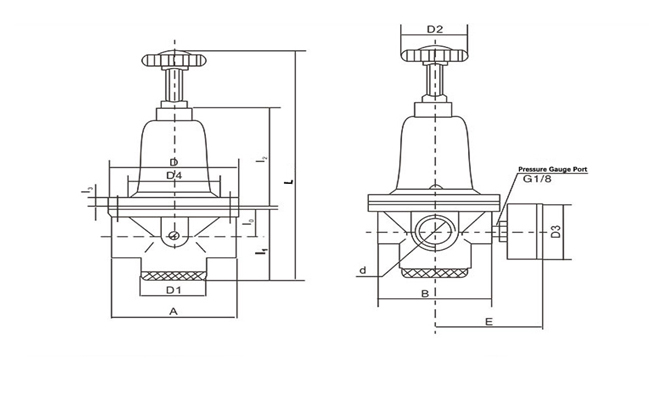

    Dimensions:

    Model NO.Port SizeABDD1D2D3D4dl0l1l2l3ELmax
    QTY-08G1/47464φ80φ44φ60φ52φ60φ31205770870180
    QTY-10G3/87464φ80φ44φ60φ52φ60φ31205770870180
    QTY-15G1/27464φ80φ44φ60φ52φ60φ31205770870180
    QTY-20G3/4106105φ120φ60φ97φ52φ90φ453077108985240
    QTY-25G1106105φ120φ60φ97φ52φ90φ453077108985240
    QTY-32G11/4133100φ120φ64φ97φ52φ90φ6340110108995275
    QTY-40G11/2133100φ120φ64φ97φ52φ90φ6335110108990275
    QTY-50G2133100φ120φ64φ97φ52φ90φ6335110108990275

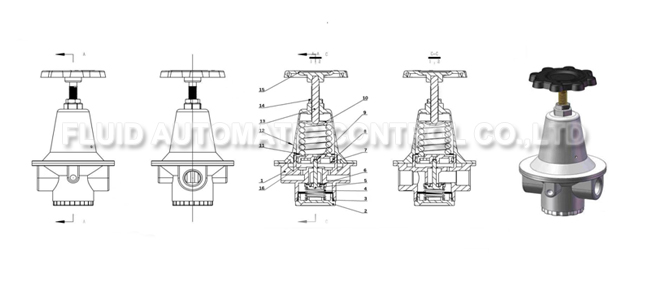

    Parts List


    SYMBOL NO.PARTS NAMEMATERIALQUANTITY
    1Valve bodyAluminum Alloy1PCS
    2Bottom CapAluminum Alloy1PCS
    3Bottom Cap O-RingNBR1PCS
    4Small SpringSpring Steel1PCS
    5Ejector RodSteel Round Bar1PCS
    6GasketNBR1PCS
    7Big Spring Ejector CapAluminum Alloy1PCS
    8Ejector Cap SealingNBR1PCS
    9Ejector Cap O-RingNBR1PCS
    10TablettingSteel Plate1PCS
    11Big SpringSpring Steel1PCS
    12Upper CapAluminum Alloy1PCS
    13Adjusting RodSteel Round Bar1PCS
    14Fixing NutsSteel Round Bar1PCS
    15HandlerPlastic1PCS
    16PistonAluminum Alloy1PCS

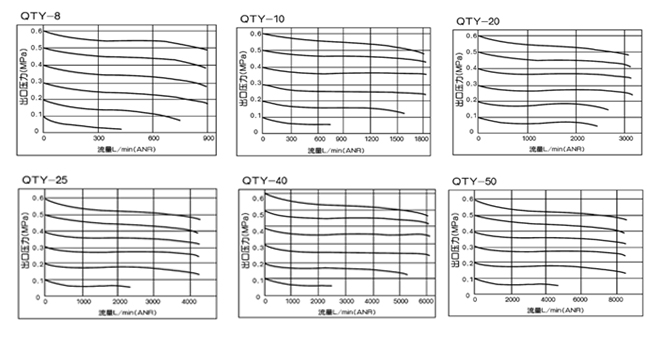

    Flow Chart:


    Air preparation equipment units,air source treatment units,Pipe line air service units
