    1.0mpa Air Source Treatment Unit Pneumatic Booster Regulator Valve Air Tank Accessories

    Ask Lasest Price
    Brand Name : FLUIDAC or OEM
    Model Number : VBA10A
    Payment Terms : TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal
    Supply Ability : 1000PCS per Month
    Delivery Time : Within 20 days after receiving payment or deposit
    • Product Details
    • Company Profile

    1.0mpa Air Source Treatment Unit Pneumatic Booster Regulator Valve Air Tank Accessories

    Pneumatic Booster Regulator Valve Air Tank Accessories Air Pressure Regulator VBA Combination


    Features:

    • Increase factory air pressure by up to 4 times
    • Air-only operation requires no power supply or wiring needed
    • Low heat generation and easy installation

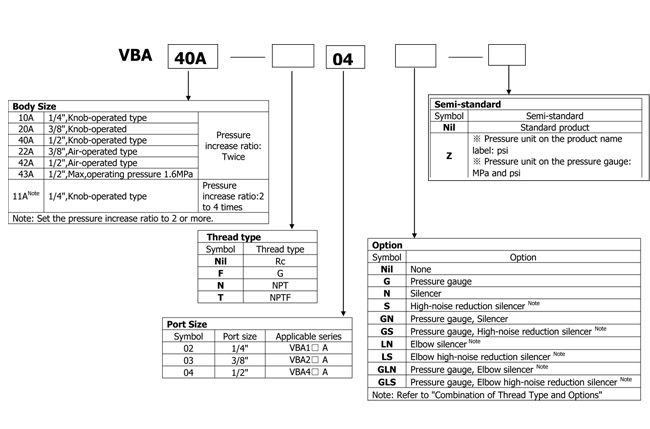

    How to order:

    Specifications:

    Standard Specification
    ModelVBA10A-02VBA20A-03VBA40A-04VBA22A-03VBA42A-04VBA43A-04VBA11A-02
    FluidCompressed Air
    Pressure increase ratioTwice2 to 4 times
    Pressure adjustment mechanismKnob-operated with refief mechanismAir-operatedKnob-operated with relief mechanism
    Max.flow rate(L/min(ANR))2301000190010001900160070
    Set pressure range(Mpa)0.2 to 2.00.2 to 1.00.2 to 1.00.2 to 1.60.4 to 2.0
    Supply pressure range(Mpa)0.1 to 1.0
    Proof pressure (Mpa)31.52.43
    Port size(Rc)(IN/OUT/EXH:3 location)1/4"3/8"1/2"3/8"1/2"1/4"
    Pressure gauge port size(Rc)(IN/OUT:2 locations)1/8"
    Tank connection port(with plug)1/4"3/8"1/2"3/8"1/2"1/4"
    Ambient and fluid temperature(℃)2 to 50 ( not freezing)
    InstallationHorizontal
    LubricationGrease( Non-lube)
    Weight(kg)0.843.98.63.98.68.60.89
