MXS Series 6mm Double Acting Pneumatic Air Cylinder Slide Table Stroke Adjustable

Ask Lasest Price
Brand Name :	FLUIDAC or OEM
Model Number :	MXS 12-50
Certification :	ISO9001
Payment Terms :	TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal
Supply Ability :	5000 Pieces Per month
Delivery Time :	Within 20 days after receiving payment or deposit

Add to Cart

Product Details
Company Profile

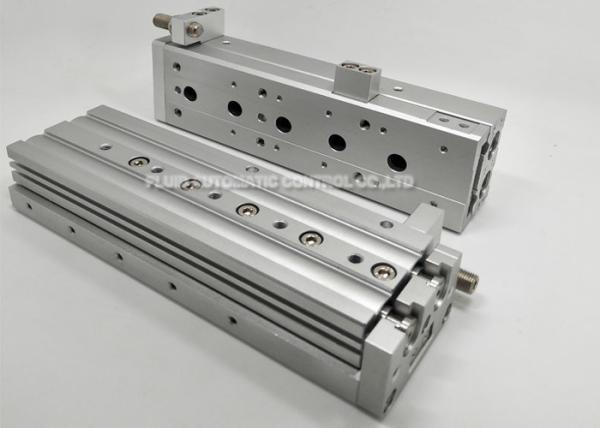

MXS Series 6mm Double Acting Pneumatic Air Cylinder Slide Table Stroke Adjustable

Slide Table Stroke Adjustable Double Acting Standard Pneumatic Air Cylinder

MXS Series Compact slide table double acting stroke adjustable Pneumatic air cylinder Bore size 6mm-25mm e.g. MXS112-50 with rubber buffer and no need lubrication

Quick Detail:

* MXS slide table air cylinder SMC equivalent

* Optional with adjustable stroke device(0~5mm)

* Can be installed from three sides
* Small size and light weight.
* Double cylinder with 2 times output force.

* Bore size 6mm,8mm,12mm,16mm,20mm,25mm

Ordering Code

MXS

Series Code
MXS:Air Slide Table

Bore Size
6mm
8mm
12mm
16mm
20mm
25mm

Stroke
10mm
20mm
30mm
40mm
50mm
75mm
100mm
125mm
150mm

Adjuster Option
Blank:Standard
AS:Adjuster on extension end
AT；Adjuster on retraction end
A:Adjuster on both end
BS:Absorber on extension end
(not available for Φ6)
BT: Absorber on retraction end
(not abailable for Φ6 )
B:Absorber on both ends
(not available for Φ6)

Function Option
Blank:Standard
F:With buffer
R: With end lock
(not available for Φ6)
P:Axial Piping Type
FR:With buffer and end lock

(not available for Φ6)
FP:With buffer and axial Piping Type

Specification
Model	MXS 6	MXS 8	MXS12	MXS16	MXS20	MXS25
Bore (mm)	6*2 Equivalent Φ8	8*2 Equivalent Φ11	12*2 Equivalent Φ17	16*2 Equivalent Φ22	20*2 Equivalent Φ28	25*2 Equivalent Φ35
Fluid	Compressed air
Action Pattern	Double-acting
Maximum Operating Pressure	0.7 MPa
Minmum Operating Pressure	0.15 MPa
Ambient And Fluid Temperature	-10~+60℃ (not freezing)
Piston Speed	50~500mm/s
Cushion	Rubber buffer(standard)
Lubrication	Non-lube
Port Size	M3*0.5	M5*0.8		Rc 1/8

Standard Stroke
Model	Standard stroke(mm)
MXS6	10,20,30,40,50
MXS8	10,20,30,40,50,75
MXS12	10,20,30,40,50,75,100
MXS16	10,20,30,40,50,75,100,125
MXS20	10,20,30,40,50,75,100,125,150
MXS25	10,20,30,40,50,75,100,125,150
