2/2 Way Stainless Steel Angle Seat Valve Polished Actuator Pneumatic Angle Seat Valve

Pneumatic Stainless Steel Pneumatic Angle Seat Valve With Stainless Steel Polished Actuator

ESV Series 2 position 2 way Stainless Steel Pneumatic Angle piston Seat Valve With Stainless Steel Polished Actuator

Quick Detail:

High flow rate;
Long life cycle;
NC and NO universal actuators with modular universal accessary program up to control heads;
Deliverable with flow direction blow or above seat
Simple conversion of the control function.

Application:

ESV110SD Series Plunger Pilot angle seat valve is propelled by piston actuator, either single acting or double acting. Actuators is one punch formed with stainless steel plate, surface polished, thus more appealing, applicable to different working temperature.2/2 Way stainless steel valve with big flow capacity,V type seals ensure reliable and effective sealing,Maintenance free, compatible with various accessories, direction indicating, stroke limiting or manual switching can be achieved conveniently.

Specification:

Model Specification	Normal Closed	SD015NC	SD020NC	SD025NC	SD032NC	SD040NC	SD050NC	SD065NC
	Normal Open	SD015NO	SD020NO	SD025NO	SD032NO	SD040NO	SD050NO	SD065NO
Material of body/Actuator		S.S304 316/S.S polished actuator
Operating Method		Plunger Pilot
Ambient and fluid		Air,Water,Oil(50CTS Bellow)
Port Size		G1/2	G3/4	G1	G1¹/₄	G1¹/₂	G2	G2¹/₂
Nominal Diameter(mm)		13	18	24	31	35	45	61
Kv(M³/h)		4.2	9	19	33	42	59	90
Seat Seal		PTFE/FPM/NBR
Stem Seal		PTFE/FPM
Piston Seal		FPM/NBR
Temperature of Medium		-10~180℃
Installing		bellow seat/above seat

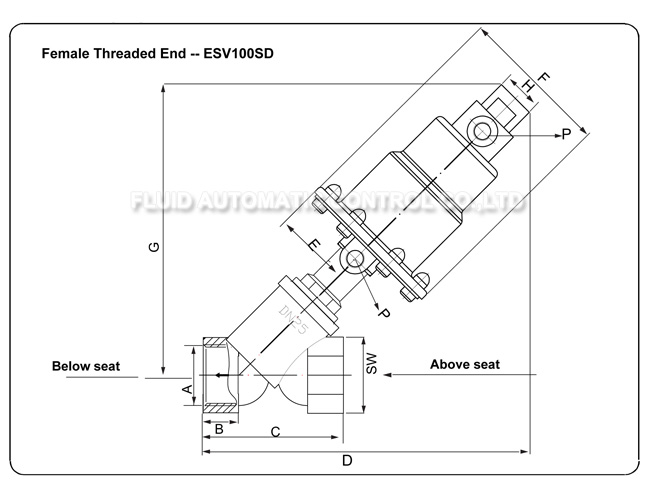

Dimensions(mm)

Port Size	DN (mm)	Actuator (mm)	A	B	C	D	E	F	G	H	P	SW
Port Size	DN (mm)	Actuator (mm)	A	B	C	D	E	F	G	H	P	SW
1/2"	DN15	40	G1/2"	14	66		30	60		21	G1/8"	28
1/2"	DN15	50	G1/2"	14	66		40	80		21	G1/8"	28
3/4"	DN20	50	G3/4"	16	68		40	80		21	G1/8"	32
1"	DN25	50	G1"	20	80		40	80		21	G1/8"	38
1"	DN25	63	G1"	20	80		49	98		21	G1/8"	38
1-1/4"	DN32	63	G1-1/4"	19	93		49	98		21	G1/8"	47
1-1/2"	DN40	63	G1-1/2"	21	104		49	98		21	G1/8"	56
2"	DN50	63	G2"	25	110		49	98		21	G1/8"	67
2"	DN50	90	G2"	25	110		67	134		21	G1/8"	67

Orderding Code:
