Two Position Five Way Manual Operated Hand Valve 4R210-08S With Spring Automatic Return

FENGHUA FLUID AUTOMATIC CONTROL CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Two Position Five Way Manual Operated Hand Valve 4R210-08S With Spring Automatic Return from wholesalers

    Buy cheap Two Position Five Way Manual Operated Hand Valve 4R210-08S With Spring Automatic Return from wholesalers
    • Buy cheap Two Position Five Way Manual Operated Hand Valve 4R210-08S With Spring Automatic Return from wholesalers

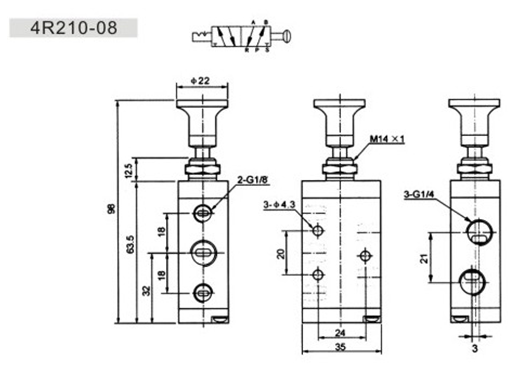

    Two Position Five Way Manual Operated Hand Valve 4R210-08S With Spring Automatic Return

    Ask Lasest Price
    Brand Name : FLUIDAC or OEM
    Certification : ISO9001
    Model Number : 4R210-08-s
    Price : USD2--
    Delivery Time : Within 20 days after receiving payment or deposit
    Payment Terms : TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal
    Supply Ability : 20000 Pieces Per month
    • Product Details
    • Company Profile

    Two Position Five Way Manual Operated Hand Valve 4R210-08S With Spring Automatic Return


    Two Position Five Way Manual Operated Hand Valve 4R210-08S With Spring Automatic Return

    4R 3R Series Two Position Three Way Two Position Five Way hand Draw valve port size G1/8”,G1/4” e.g 4R210-08S with Spring Return


    Quick Detail:


    * R 4R series Hand Draw Valve

    * Aluminum Alloy Material

    * Two Position Three Way,Two Position Five Way

    * Port Size G1/4,G1/8

    * With spring return for option

    * Easy to operate,Long service life


    Applications:


    3R 4R series hand draw valve manual operated use for fast direction change of anywhere and anytime necessary function required by manual operating,Due to easy and flexible operating,it was widely use in the Pneumatic system


    Specifications:


    ORDERING CODE

    4R

    210

    06

    S

    Type

    Body Width

    Port Size

    Reset Type

    4R:Two Position Five Way Hand Draw Valve

    210:35mm

    06:G1/8"

    Blank:Standard

    310:40mm

    3R:Two Position Three Way Hand Draw Valve

    410:50mm

    08:G1/4"

    S:Spring Return


    SPECIFICATION

    Model no

    4R 3R Series

    Working Medium

    Compressed 40 Micron Filtered Air

    Body Material

    Aluminum Alloy

    Position And Way Numbers

    Two Position Five Way Two Position Three Way

    Port Size

    G1/8" G1/4"

    Motion Pattern

    Direct Acting

    Working Pressure

    0~0.8MPa

    Max.Pressure Resistance

    1.0MPa

    Operating Temperature

    0~60℃


    Pneumatic Valve,Hand Valve,Manual Operated valve
