Low Pressure PVC Liquid Hose For Agriculture , Flexible Plastic Tube

Ask Lasest Price
Brand Name :	FLUIDAC or OEM
Certification :	ISO9001
Model Number :	PVC-1/4-100M
Price :	USD10--
Delivery Time :	Within 20 days after receiving payment or deposit
Payment Terms :	TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal
Supply Ability :	80000 Meters Per month

Add to Cart

Product Details
Company Profile

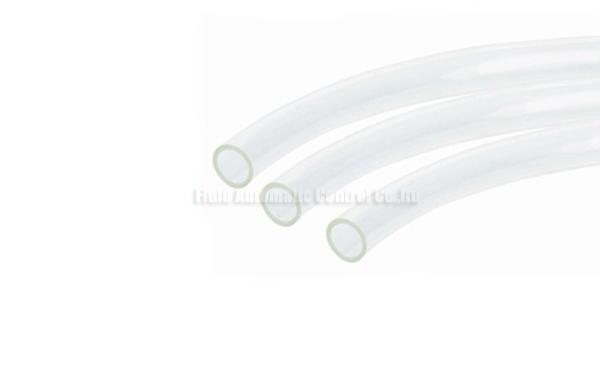

Low Pressure PVC Liquid Hose For Agriculture , Flexible Plastic Tube

Low Pressure PVC Liquid Hose For Agriculture , Flexible Plastic Tube

PVC material liquid hose non-reinforced Inner Diameter size 5/64”~2” e.g PVC-1/4-100M

Quick Detail:

* PVC liquid hose

* inner Diamter inch size 5/64”~2”

* material:PVC non-reinforcement

* flexible and soft,easy for pipe work

* conform to ROHS environment protection requirement

* pransparent can see inside fluids

* anti-corrosion

* light in weight,cost efffectly

* wide applicable range of tempeature

* non-toxic,tastless

Applications:

PVC liquid hose applicable to industrial,agriculture,farming etc as normal temperature normal pressure fluids transporation pipe,it also can be used as craft and toy parts

Specifications:

ORDERING CODE
PVC	1/4	100M
Type	Inner Diameter Inch Size	Meters/Roll
PVC:PVC Material Liquid Hose	5/64	100M
	1/8
	5/32
	1/5
	1/4
	5/16
	3/8
	1/2	50M
	5/8
	3/4
	1
	1-1/4
	1-1/2	40M
	2	40M

SPECIFICATION

INCH	Metric Size		Meters/Roll	Normal Using Pressure	Bursting Pressure	Weight	Volume
	I.D	O.D	Meters/Roll	Normal Using Pressure	Bursting Pressure	Weight	Volume
	mm	mm	m	Mpa	Mpa	kg/roll	m3
5/64	2	4	100			1.2
1/8	3	5	100			1.7
5/32	4	6	100			2.2
1/5	5	9	100			5.6	0.011
1/4	6	8	100	0.2	1	3	0.016
5/16	8	10	100	0.2	0.9	3.8	0.018
3/8	10	12	100	0.2	0.9	4.7	0.019
1/2	12	15	50	0.15	0.8	4.3	0.021
5/8	15	20	50	0.15	0.8	9	0.023
3/4	19	22	50	0.15	0.8	6.55	0.047
1	25	30	50	0.15	0.8	14.5	0.07
1-1/4	32	38	50	0.15	0.8	22.4	0.068
1-1/2	38	44	40	0.15	0.7	20.88	0.122
2	50	58	40	0.15	0.7	36.64	0.226

PVC HOSE,PVC PIPE,PVC TUBE
