PA66 Blue Straight Flexible Adjustable Coolant Pipe For Tooling
Machine Coolant System With Nozzle Changeable
LPC Series flexible adjustable coolant pipe straight type, Tee type
,magnetic seat type,switch type size G1/4”,G3/8”,G1/2”,G3/4” e.g
LPC10-G1/4-N-1-BU with nozzle changeable
Quick Detail:
* LPC Series flexible adjustable coolant hose tube
* Polyamide PA66 material
* thread size G1/4”,G3/8”,G1/2”,G3/4”
* pipe Outer Dia.10mm,12mm,14mm,15mm,16mm,20mm,22mm
* various nozzle type for option
* Length can be according to request
* blue colour,black colour,grey colour,white colour,orange colour
selectable
* high flexible for piping working
* high precision,self-sealing
* pressure-resistance,can bear strong water pressure impacting
* modular design,easy to connect and disconnect quantity of links
for functional requirement
* magnetic seat type and with ON/OFF switch type for option
* tee three way type reduction available
* temperature-resistance,corrosion resistance
* big flow rate,Various nozzle Diameter for option
* direction universal,free of rotation
Applications:
LPC series flexible adustable coolant tube used widely in the
tooling machine,hydraulic machanism system,CNC tooling machine oil
system,water coolant system etc.
Specifications:
ORDERING CODE | |
LPC | 20 | G1/4 | P | 1 | BU | |
Type | Pipe Outer Diameter(Ømm) | Thread size | Function type | Nozzle(cock) Type | Pipe Colour | |
LPC:LPC Series flexible adjustable coolant Pipe | 10 | G1/4" | P:Standard type | 1:Small Size Round Type | BU:BLUE | |
12 | 2:Big Size Round Type | O:Orange | |
14 | G3/8" | K:With ON/OFF Switch Type | 3:Screw type | |
15 | 4:Small size Flat type | B:BLACK | |
16 | G1/2" | M:With Magnetic Seat type | 5:Big size Flat Type | GY:GREY | |
20 | |
22 | T:Tee Shape three way with Y connector type | 6:Right Angle type | W:WHITE | |
G3/4" | |
24(Special type) | N:New Type Nozzle changeable | |
NOTE:G1/4"SIZE EACH LINK 13MM,G3/8" SIZE EACH LINK 17.5MM,G1/2"
SIZE EACH LINK 21MM | |
Model | Hexagon Width Cross Flat(mm) | Pipe O.D(φmm) | Aperture Flow(φmm) | Thread Size | Working Presure(Bar) | Standard Length(mm) |
LPC10-G1/4-P | 18 | 10 | 3 | 1/4" | 2 | 180 |
LPC12-G1/4-P | 12 |
LPC14-G3/8-P | 22 | 14 | 4 | 3/8" | 3 | 410 |
LPC16-G3/8-P | 15 |
LPC16-G1/4-P | 16 | 5 | 1/4" | 180 |
LPC16-G1/2-P | 28 | 16 | 6 | 1/2" | 4 | 410 |
LPC20-G1/2-P | 20 |
LPC22-G3/8-P | 22 | 8 | 3/8" |
LPC15-G1/4-K | 22 | 15 | 4 | 1/4" | 3 | 200.300.350.400..450 500.550.600 |
LPC14-G1/4-K | 14 |
LPC16-G3/8-K | 16 | 5 | 3/8" |
LPC16-G3/8-K | 28 | 16 | 6 | 3/8" | 4 | 300.350.400.450.500. 550.600.650.700.800. |
LPC20-G1/2-K | 20 | 1/2" |
LPC22-G1/4-K | 22 | 8 | 1/4" |

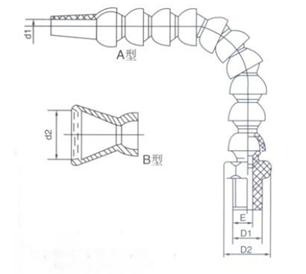

D1 | d1 | d2 | D2 | L |
G1/4" | 15 | 18 | 14 | 280 |
3 | 25 |
4.5 | |
G3/8" | 6.5 | 32 | 21 | 410 |
40 |
G1/2" | 6.5 | 50 | 24 | 410 |
10 |
LPC-G1/4-P Series
LPC-G3/8-P Series
LPC-G1/2-P Series
LPC-G3/4-P Series
LPC-N New type nozzle changeable Series
LPC-K Switch ON/OFF Series
LPC-T Tee three way Series
