PA6,PA11/PA12 Polyamide Non-toxic Pneumatic Tube , 20Bar Nylon Air
Hose
Polyamide Nylon PA6 PA12 material tube O.D size
4mm,6mm,8mm,10mm,12mm,16mm working temperature -40~100℃,working
pressure 20Bar e.g PA(6)8x6-100M-T
Quick Detail:
* polyamide PA6 PA12 material tube
* working temperature:-40~100℃
* working pressure 2MPa
* outer Dia. Metric 4mm, 6mm, 8mm,10mm,12mm,16mm
* inch size Out Dia.1/4”,5/16”,3/8”,1/2”
* conform to ROHS environment protection requirement
* good flexibility for piping working
* pressure-resistance,wear-resistance
* resistance
toSolvents,alkalizes.oils,greases,potroleum,fungus,molds
* resistance to dilute mineral and organic acids.
* heat and light stabilized
* wide applicable range of tempeature

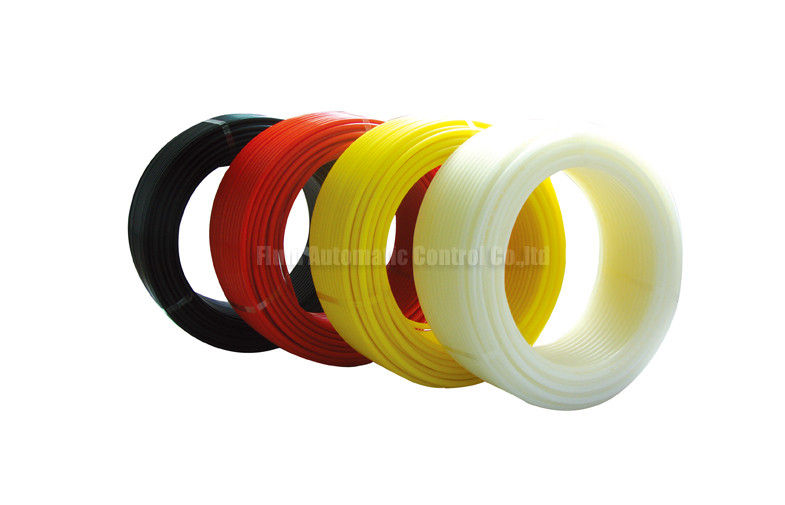

* various tube colours for option make it easier to distinguish
pipes one another
* non-toxic,tastless
Applications:
PA6 PA12 Seres Nylon tube used widely in air conditioning,air
lines,Chemicals, compressed air, coolant,dispensing equipment,
Fuel&Oil, Grease&Lubrication lines,Hydraulics,
Instrumentation, laboratory,paint supply,Refrigeration etc
Specifications:
ORDERING CODE |
PA(6) | 8x6 | 100M | BU |
Type | O.Dx I.D Metric Size And Inch Szie | Meters Per Roll | Colours |
PA(6):Polyamide Nylon 6 Material Air Tube | 4x2.5 | 200m/Roll | T: TRANSPARENT |
6x4 | 100m/Roll |
8x6 |
10x7.5 | BU:BLUE |
10x8 |
12x9 | B:BLACK |
PA(12):Polyamide Nylon 12 Material Air Tube | 16x13 |
1/4" |
5/16" | R:RED |
3/8" |
1/2" |
SPECIFICATION
1,Material: Polyamide
2,Working Fluids:Air,water,oil
3,Working Pressure:2MPa
4,Working Temperature:-40~100℃
MODEL NO | O.D | I.D | Tolerance(mm) | THICKNESS(S) | BURSTING PRESSURE(Bar) | WORKING PRESSURE(Bar) |
PA(6)4×2.5/200M | 4 | 2.5 | 0.1 | 0.75 | 60 | 20 |
PA(6)6×4/100M | 6 | 4 | 0.1 | 1 | 60 | 20 |
PA(6)8×6/100M | 8 | 6 | 0.1 | 1 | 60 | 20 |
PA(6)10×7.5/100M | 10 | 7.5 | 0.12 | 1.5 | 60 | 20 |
PA(6)10×8/100M | 10 | 8 | 0.12 | 1 | 45 | 15 |
PA(6)12×9/100M | 12 | 9 | 0.15 | 1.5 | 60 | 20 |
PA(6)16×12/100M | 16 | 12 | 0.2 | 2 | 60 | 20 |
PA(6)1/4-100M | 6.3 | 4.6 | 0.1 | 0.85 | 60 | 20 |
PA(6)5/16-100M | 8 | 6 | 0.1 | 1.5 | 60 | 20 |
PA(6)3/8-100M | 9.5 | 7 | 0.12 | 1.5 | 60 | 20 |
PA(6)1/2-100M | 12.7 | 9.6 | 0.15 | 1.6 | 60 | 20 |
