    30 Million Times Camozzi Spacer Sleeve Type Solenoid Control Valve

    Ask Lasest Price
    Brand Name : FLUIDAC or OEM
    Certification : ISO9001
    Model Number : 4VS210-08
    Price : USD5--
    Delivery Time : Within 20 days after receiving payment or deposit
    Payment Terms : TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal
    Supply Ability : 20000 Pieces Per month
    • Product Details
    • Company Profile

    30 Million Times Camozzi Spacer Sleeve Type Solenoid Control Valve


    30 Million Times Camozzi Spacer Sleeve Type Solenoid Control Valve

    Camozzi Spacer sleeve structure solenoid valve life cycle 30 million times body width 18mm,22mm,27mm,34mm single acting double acting port size M5~G1/2 e.g 4VS210-08



    Quick Detail:



    * 4VS series Spacer sleeve solenoid valve
    * Aluminum material Body width 18mm,22mm,27mm,34mm
    * Pilot Operated,Inner Pilot type
    * With Spacer Sleeve design,effectively reduce the O-ring seal friction during motion, long service life up to 30000000 cycles
    * With dust-Proof function
    *Plastic Sleeve or Aluminum Sleeve for option

    *High Acuracy Sleeve machining ensure smooth motion

    Applications:



    4VS Spacer sleeve solenoid valve used as directional control equipment to change the direction of working medium to drive a linear actuator in Pneumatic automation system


    Specifications:

    ORDERING CODE

    4VS

    2

    10

    08

    B

    AC220V

    W

    4VS: Spacer Sleeve Five Way Solenoid Valve

    Body Width

    Function Type

    Joint Port size

    Connecting type and Initial State

    Voltage

    Electricity Connect

    Form

    1:18mm

    10:Two Position Single Coil

    M5:

    Blank:Pipe Joint type

    AC220V:220VAC

    Blank:Standard

    Connector

    2:22mm

    20:Two Position Double Coil

    06:1/8"

    B:Namur Type

    AC110V:110VAC

    LD:Brown Din Connector with Light Indicator

    3:27mm

    30C:Three Position Double Coil Center Closed type

    08:1/4"

    NC:Normally Closed type

    DC24V:24VDC

    LD1:White Din Connector With Light Indicator

    4:34mm

    30E:Three Position Double coil Center Exhausting type

    10:3/8"

    NO:Normally Open type

    AC24V:24VAC

    W:Out-leading Wire

    30P:Three Position Double coil Center Pressuer Type

    15:1/2"

    DC12V:12VDC


    SPECIFICATION

    Model no(18mm)

    4VS110-M5

    4VS110-06

    4VS120-06

    4V130C-06

    4VS130E-06

    4VS130P-06

    Position And Way Numbers

    Two Position- Five Way

    Three Position-Five Way

    Effective Sectional Area

    10mm²(CV=0.56)

    12mm²(CV=0.67)

    9mm²(CV=0.5)

    Port Size

    Inlet,Outlet,Exhausting M5x0.8

    Inlet,Outlet,Exhausting G1/8"


    Model no

    (22mm)

    4VS210-06

    4VS220-06

    4VS230C-06

    4VS230E-06

    4VS230P-06

    4VS210-08

    4VS220-08

    4VS230C-
    08

    4VS230E-
    08

    4VS230P
    -08

    Position And Way Numbers

    Two Position-Five Way

    Three Position-Five Way

    Two Position-Five Way

    Three Position-Five Way

    Effective Sectional Area

    14mm²(CV=0.78)

    12mm²(CV=0.67)

    16mm²(CV=0.89)

    12mm²(CV=0.67)

    Port Size

    Inlet,Outlet,Exhausting G1/8"

    Inlet,Outlet,Exhausting G1/4"


    Model
    no
    (27mm)

    4VS310-
    08

    4VS320-
    08

    4VS330C-
    08

    4VS330E-
    08

    4VS330P-
    08

    4VS310-
    10

    4VS320-
    10

    4VS330C-
    10

    4VS330E-
    10

    4VS330P-
    10

    Position And
    Way
    No.

    Two Position-Five Way

    Three Position-Five Way

    Two Position-Five Way

    Three Position-Five Way

    Effective Sectional Area

    25mm²(CV=1.4)

    18mm²(CV=1.00)

    30mm²(CV=1.68)

    18mm²(CV=1.00)

    Port Size

    Inlet,Outlet,Exhausting G1/4"

    Inlet,Outlet G3/8 Exhuasting Port G1/4


    Model no(34mm)

    4VS410-15

    4VS420-15

    4VS430P-15

    4VS430E-15

    4VS430E-15

    Position And Way Numbers

    Two Position-Five Way

    Three Position-Five Way

    Effective Sectional Area

    50mm²(CV=2.79)

    30mm²(CV=1.68)

    Port Size

    Inlet,Outlet,Exhausting G1/2"

    Working Medium

    Compressed 40 Micron Filtered Air

    Motion Pattern

    Inner Pilot

    Working Pressure

    0.15~0.9MPa

    Max.Pressure Resistance

    1.2MPa

    Operating Temperature

    5~50℃

    Voltage Tolerance

    ±10%

    Power consumption

    AC:4.5VA DC:3W

    Insulation&Protection Class

    F Class IP65

    Highest motion Frequency

    5 cycle/Sec

    Minimum Activate Time

    0.05 Sec

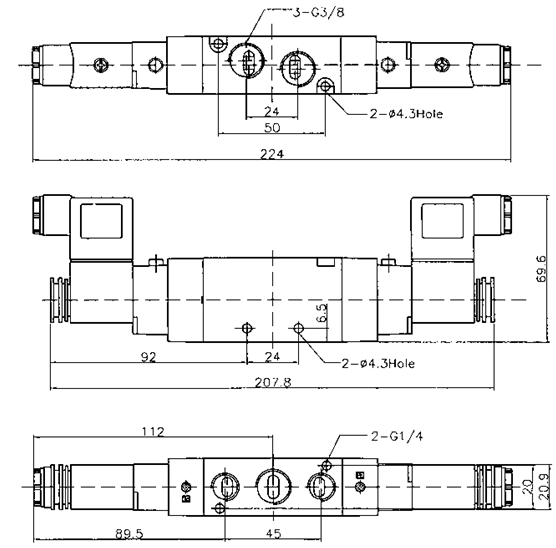

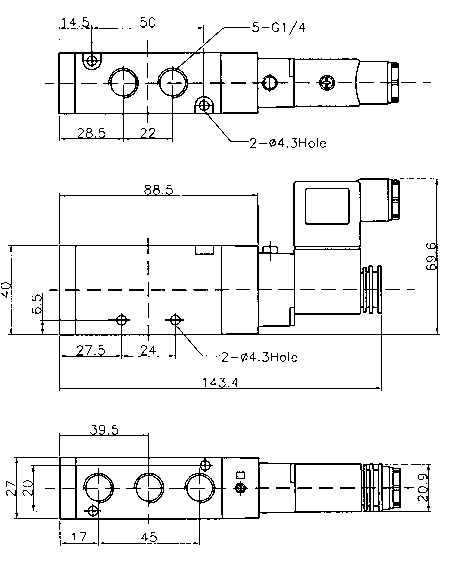

    4VS110-06

    4VS120-06


    4VS210-06

    4VS210-08

    4VS220-08

    4VS310-08

    4VS310-10

    4V320-10

    4VS410-15

    4VS4210-15

    Pneumatic valve,solenoid valve,Pilot Operated solenoid valve
