Pneumatic Components Lever type Automatic Drainer For Air Filter
Water Drainer
ADV Series automatic drainer for Air filter of
FESTO,SMC,AIRTAC,ASCO,NORGEN,ATLAS,MINDMAN etc plastic body
material Drainage connection G1/8” or Ø10 push-in type lever type
e.g ADV-F-GW12-01
Quick Detail:
* ADV Series automatic drainer
* Body material reinforced plastic
* For application For air filter of FESTO,SMC,AIRTAC, ASCO, NORGEN,
ATLAS,MINDMAN et
* Operating pressure0.2~0.8MPa
* High filter precison from 5Micron~40Micron
* Connecting to water cup outlet drainage Diamter
10mm,12mm,14mm,15.5mm,16mm,17mm,18mm
* Drainage outlet G1/8 Threaded type or Push-in connect type for
option
* Normal open drainage status
* Stable design ,long service life cycle
Applications:
This product installed at bottom of water cup serves as a drainer
for air filters of high-pressure air source system and functions to
divert water for the whole pipeline system.
It is generally used for the equipment inconvenient for manual
discharge of water or comparatively high frequency of water
discharge
such as the low spots of pipeline,freezing type air drier and the
water
deposit place of air chamber etc.
ADV series especially use in the high place or narrow place or some
hazard or toxic gas place where out of reach of human manual
operation
Specifications:
ORDERING CODE |
ADV | F | G | W | 12 | 01 |
Type | Type Application | Drainage type | Drainage Outlet Connection | Connecting water cup Outlet Diameter | Port Size |
ADV:Plastic Series Automatic Drainer | F: For FESTO Air Filter | G:LEVER Type | W: Male Thread Connection | 10:10mm | 01:G1/8" |
S: For SMC Air Filter | 12:12mm |
N: For NORGEN Air Filter | N: Female Thread Connection | 14:14mm |
AS :For ASCO Air Filter | 15.5:15.5mm | 10:Ø10 O.D Tube |
AT: For ATLAS Air Filter | 16:16mm |
A: For Airtac Air Filter | K: Quick Push-in Connection | 17:17mm |
M: For Mindman Air Filter | 18:18mm |
SPECIFICATION
1,Working Medium:Compressed Air
2,Ambient and Fluid Temperature:5-60℃
3,Operating Pressure:0.2~0.8Mpa
4,Body material:Reinforce plastic
5,Drainage outlet connection:Thread type or Quick push-in type
6:Drainage outlet connection size:G1/8” or Ø10 O.D Tube
7,Thread type:Male thread or Female thread
8,Drainage type:Lever Type
9,Connecting to water cup outlet Diameter: 10mm, 12mm, 14mm,
15.5mm, 16mm, 17mm,18mm
10,Drainage motion:Fully automatic type

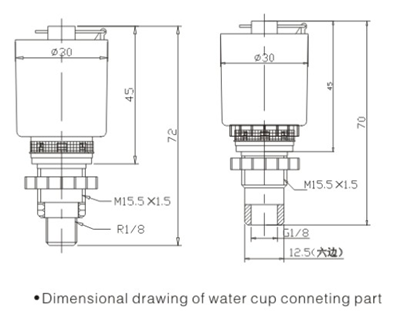

ADV-F
ADV-S
ADV-N And ADV-AT
ADV-A
ADV-AS And ADV-M
