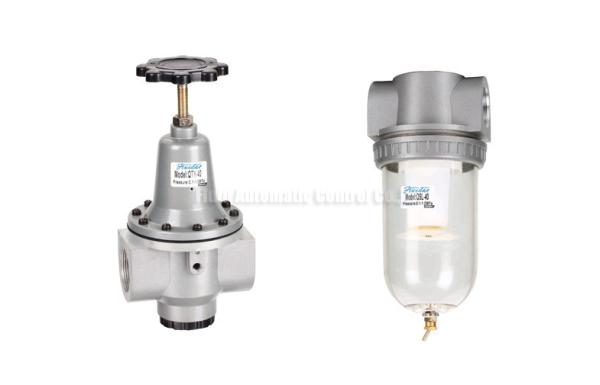

Pipe Line Pneumatic Diaphragm Air Regulator , Air Lubricator Port Size G2"

    Buy cheap Pipe Line Pneumatic Diaphragm Air Regulator , Air Lubricator Port Size G2" from wholesalers

    Buy cheap Pipe Line Pneumatic Diaphragm Air Regulator , Air Lubricator Port Size G2" from wholesalers
    • Buy cheap Pipe Line Pneumatic Diaphragm Air Regulator , Air Lubricator Port Size G2" from wholesalers

    Pipe Line Pneumatic Diaphragm Air Regulator , Air Lubricator Port Size G2"

    Ask Lasest Price
    Brand Name : FLUIDAC or OEM
    Certification : ISO9001
    Model Number : QTY-50
    Price : USD3--
    Delivery Time : Within 20 days after receiving payment or deposit
    Payment Terms : TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal
    Supply Ability : 20000 Pieces Per month
    • Product Details
    • Company Profile

    Pipe Line Pneumatic Diaphragm Air Regulator , Air Lubricator Port Size G2"


    Pipe Line Pneumatic Diaphrgm Air Regulator,Air Lubricator Port Size G2"

    Q Series pipe line air regulator,air filter and Air lubricator Large port size up to 2” e.g QTY-50 with G2” Port size heavy duty


    Quick Detail:


    * Q Series air filter,air regulator,air lubricator

    * Aluminum die-casting body material

    * Port size G1/4”,G3/8”,G1/2”,G3/4”,G1”,G1-1/4”,G1-1/2”,G2”

    * Pressure range adjustable 0.05~0.63MPa

    * Input air pressure 1.0MPa

    * Filter fineness 50Micron standard

    * Pipe line application,Heavy duty

    * Stable design,pressure-resistance,long service life cycle


    Applications:


    Q series air service units installing between the air compressor and Pneumatic system equipment,close to pneumatic system equipment.

    Q series air service units including, F(Filter), R(Regulator), L(Lubricator)

    Q Series Air service units can maintain steady of the pneumatic system pressure by air regulator,avoid the sudden change of air source pressure to do harm to the pneumatic system components. Filter can be clean the air source,separate the water and other impurity from the air source,thus improve the qaulity of air medium effectly.

    QH Series air units heavy duty,especially use in the pipe line pneumatic system.


    Specifications:


    ORDERING CODE

    QTY

    08

    Type

    Port Size

    QTY: Q Series Air Regulator

    08:G1/4"

    10:G3/8"

    15:G1/2"

    QSL:Q Series Air Filter

    20:G3/4"

    25:G1"

    32:G1-1/4"

    QIU:Q Series Lubricator

    40"G1-1/2"

    50:G2"


    SPECIFICATION


    1,Working Medium:Air source

    2,Body material:Aluminum die-casting

    3,Filter bowl material:PC

    4,Filter element material:Brass or Plastic

    5,Seal Material:NBR

    6,Working pressure:0.05~0.63MPa

    7,Working Temperature:5~60℃

    8,Filtration fineness:50µ

    9,Mounting type: Pipe-line mounting

    10,Regulator type:Diaphragm type

    11,Port size:G1/4”,G3/8”,G1/2”,G3/4”,G1”,G1-1/4”,G1-1/2”,G2”


    Model No

    Ma

    A

    B

    C

    D

    E

    F

    G

    QSL-8

    G1/4

    Ø70

    74

    Ø80

    36

    122

    180

    64

    QSL-10

    G3/8

    QSL-15

    G1/2

    QSL-20

    G3/4

    Ø90

    109

    Ø120

    48

    187

    250

    113

    QSL-25

    G1

    QSL-40

    G1½

    136

    69

    218

    280

    104


    Model No

    d

    A

    D

    D1

    Lo

    L1

    L2

    L

    QSL-8

    G1/4

    90

    φ70

    φ88

    φ55

    114

    114

    160

    QSL-10

    G3/8

    QSL-15

    G1/2

    QSL-20

    G3/4

    115

    φ90

    φ110

    φ66

    21

    151

    215

    QSL-25

    G1

    QSL-40

    G1½

    132

    φ90

    φ130

    φ92

    32

    228

    310

    Air preparation equipment units,air source treatment units,Pipe line air service units
