Air Source Treatment Unit G1/2" Pneumatic Filter Regulator and
Lubricator Piston Type
U Series air service units including filter,regulator,lubricator
and the combination group,port size G1/4”~G1” e.g UFRL-02-D with
automatic drainer
Quick Detail:
* U Series air service units
* Aluminum die-casting body material
* Structure piston type
* Modular design,different combination for flexible application
* Port size G1/4”,GT3/8”,G1/2”,G3/4”,G1”
* Pressure range adjustable 0.15~0.85MPa
* Filter fineness 20 Micron standard
* Metal material bowl for option
* With semi-automatic drainer standard,automatic drainer of
drainage model function for selection
* Stable design, long service life cycle
Applications:
U series air service units installing between the air compressor
and Pneumatic system equipment,close to pneumatic system equipment.
U series air service units including F&R&L(Filter and
Regulator and Lubricator) FR&L(Filter regulator and
Lubricator), FR(Filter Regulator), F(Filter), R(Regulator),
L(Lubricator).
U Series Air service units can maintain steady of the pneumatic
system pressure by air regulator,avoid the sudden change of air
source pressure to do harm to the pneumatic system components.
Filter can be clean the air source,separate the water and other
impurity from the air source,thus improve the qaulity of air medium
effectly.Lubricator supply lubricant to the pneumatic system to
keep system working smooth,significantly extend the service life
cycle of pneumatic system components.
Specifications:
ORDERING CODE |
UFRL | 02 | D |
Type | Port Size | Drainage Model(For Filter) |
UFRL:U Series Filter and Regulator and Lubricator Three combination | 02:G1/4" | D:Automatic Drainer |
UFR/L:U Series Filter Regulator and Lubricator Two combination | 03:G3/8" |
UFR:U Series Filter Regulator | 04:G1/2" | S:Semi-automatic Drainer |
UF:U Series Filter | 06:G3/4" |
UR: U Series Regulator | 08:G1" |
UL:U Series Lubricator |
SPECIFICATION
1,Working Medium:Air source
2,Body material:Aluminum die-casting
3,Filter bowl and Lubricator bowl material:PC
4,Filter element material:Brass
5,Bowl Guard:Reinforced plastic
6,Seal Material:NBR
7,Adjustabing knob:POM
8,Working pressure:0.15~0.85 MPa standard
9,Working Temperature:-10~60℃
10,Filtration fineness:20µ,5µ can be available
11,Mounting type: Pipe mounting
12,Regulator type:Piston type
13,Lubricator type:Oil volume adjustable during working
14,Port size:G1/4”,G3/8”,G1/2”
15,Drainage model: Semi-automatic drainer,automatic drainer
16,Design type:Modular

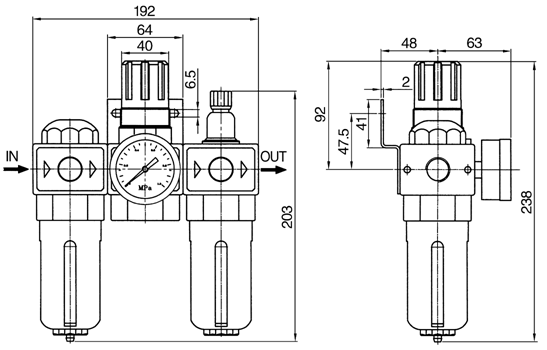

UFRL-02/03/04
UFRL-06/08
UFR/L-02/03/04
UFR/L-06/08
