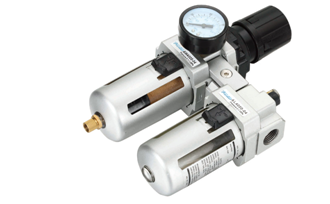

AC4010-04 Air Source Treatment Unit, Filter Regulator And
Lubricator With auto drainer
A Series SMC type air service units including air filter,air
regulator,air lubricator and combination group,body material
Aluminum die-casting,working pressure 0.5~8.5bar,filter fineness 40
micron port size M5~G1” e.g AC4010-04Dwith auto
drainer,pressure-resistance,long service life cycle
Quick Detail:
* A series SMC type air service units
* Aluminum die-casting body material
* Modular design,different combination for flexible application
* Port size M5x0.8,G1/8”,G1/4”,G3/8”,G1/2”,G3/4”,G1”
* Pressure range adjustable0.5~8.5Bar
* Filter fineness 40 Micron available
* With Manual drainer,semi-automatic drainer,automatic drainer of
drainage model function for selection
* Stable design,pressure-resistance,long service life cycle
Applications:
A series air service units installing between the air compressor
and Pneumatic system equipment,close to pneumatic system equipment.
A series air preparation units including F&R&L(Filter and
Regulator and Lubricator) FR&L(Filter regulator and
Lubricator), FR(Filter Regulator), F(Filter), R(Regulator),
L(Lubricator).
A Series Air preparation units can maintain steady of the pneumatic
system pressure by air regulator,avoid the sudden change of air
source pressure to do harm to the pneumatic system components.
Filter can be clean the air source,separate the water and other
impurity from the air source,thus improve the qaulity of air medium
effectly.Lubricator supply lubricant to the pneumatic system to
keep system working smooth,significantly extend the service life
cycle of pneumatic system components.
Specifications:
ORDERING CODE |
AC | 4010 | 04 | D |
Type | Body Size Code | Port Size | Drainage Model(For Filter) |
AC:Two combination or Three Combination Group | 1000 | M5:M5x0.8 | D:Automatic Drainer |
2000 |
AW:Filter Reguator | 3000 | 01:G1/8" |
4000 | 02:G1/4 | M:Manual Drainer |
AR:Regulator | 5000 |
1010(Code for two combination) | 03:G3/8" |
AF:Filter | 2010(Code for two combination) | 04"G1/2" | S:Semi-automatic Drainer |
3010(Code for two combination) |
AL:Lubricator | 4010(Code for two combination) | 06:G3/4" |
5010(Code for two combination) | 10:G1" |
SPECIFICATION
1,Working Medium:Air source
2,Body material:Aluminum die-casting
3,Filter bowl and Lubricator bowl material:PC
4,Filter element material:Brass or plastic
5,Bowl Guard:Steel
6,Seal Material:NBR
7,Adjustabing knob:POM
8,Working pressure:0.5~8Bar
9,Working Temperature:0~60℃
10,Filtration fineness:40µ,5µ can be available
11,Mounting type: Pipe mounting or bracket support mounting
12,Regulator type:Diaphragm type
13,Lubricator type:Oil volume adjustable during working
14,Port size:M5x0.8~G1”
15,Drainage model:Manual drainer,Semi-automatic drainer,automatic
drainer
* esign type:Modular
Model | Port Size | A | B | C | D | E | F | G | H |
AC1000 | M5x0.8 | 91 | 33 | 25.5 | 84.5 | 26 | 25 | 25 | 20 |
AC2000 | G1/8″~ G1/4″ | 140 | 50 | 38 | 125 | 56.8 | 30 | 40 | 24 |
AC2500 | G1/4″~ G3/8″ | 181 | 64 | 38 | 156.5 | 60.8 | 41 | 53 | 35 |
AC3000 | G1/4″~ G3/8″ | 181 | 64 | 38 | 156.5 | 60.8 | 41 | 53 | 35 |
AC4000 | G3/8″~ G1/2″ | 238 | 64 | 41 | 191.5 | 65.5 | 50 | 70 | 40 |
AC4000-06 | G3/4″ | 253 | 89 | 41 | 193 | 69.5 | 50 | 70 | 40 |
AC5000 | G3/4″~ G1″ | 300 | 105 | 48 | 271.5 | 75.5 | 69.8 | 90 | 50 |
Model | Port Size | A | B | C | D | E | F | G | H |
AC1010 | M5x0.8 | 109.5 | 50.5 | 29 | 58 | 26 | 25 | 25 | 20 |
AC2010 | G1/8″~ G1/4″ | 164.5 | 78 | 45 | 90 | 56.8 | 30 | 40 | 24 |
AC3010 | G1/4″~ G3/8″ | 211 | 92.5 | 58.5 | 117 | 60.8 | 41 | 53 | 35 |
AC4010 | G3/8″~ G1/2″ | 262 | 112 | 77 | 154 | 70.5 | 41 | 70 | 40 |
AC4010-06 | G3/4″ | 267 | 114 | 82 | 164 | 70.5 | 50 | 70 | 40 |
AC5010 | G3/4″~ G1″ | 338 | 116 | 97.5 | 195 | 75.5 | 69.8 | 90 | 50 |
AC Series Three Combination(Filter and Regulator and Lubricator)
AC Series Two Combination(Filter Regulator and Lubricator)
AW Series Filter Regulator
AF Series Filter
AR Series Regulator
AL Series Lubricator
Air preparation equipment units,air source treatment units,air-line
service units
