70mm Bore Size Aluminum Air Driven Pump 3/8" 2Mpa - 6Mpa For Hydraulic Jack

Ask Lasest Price
Brand Name :	FLUIDAC or OEM
Certification :	ISO9001
Model Number :	AP1001
Price :	USD10--
Delivery Time :	Within 20 days after receiving payment or deposit
Payment Terms :	TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal
Supply Ability :	5000 Pieces Per month

Add to Cart

Product Details
Company Profile

70mm Bore Size Aluminum Air Driven Pump 3/8" 2Mpa - 6Mpa For Hydraulic Jack

70mm Bore Size Aluminum Air Driven Pump 3/8" 2Mpa - 6Mpa For Hydraulic Jack

AP series Air pump for air over hydraulic jack,air supply pressure 2~6Mpa,bore size 70mm,80m.Port size 1/4”,3/8”,1/2” G,PT,NPT thread,e.g AP1001.

Quick Detail:

* AP Series air pump for air over hydraulic jack

* Aluminum alloy body material

* Bore size 70mm,80mm

* Stroke according to requirement

* Mickey mouse barrel,round barrel with tie-rod for option

* Air supply pressure 2~6Mpa

* Port size 1/4”,3/8”,1/2” G,NPT for option

* Working termperature:0~60℃

Applications:

AP series air pump designed for application in the air over hydraulic jack

Specifications:

1,Body material:Aluminum alloy

2,Bore size:70mm,80mm

3,Port size: 1/4”,3/8”,1/2”

4,Working temperature:0~60℃

5,Air supply pressure range:2~6Mpa

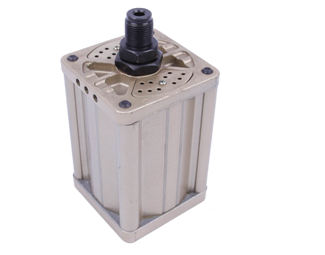

AP1001 Bore size 70mm,Mickey mouse barrel air pump

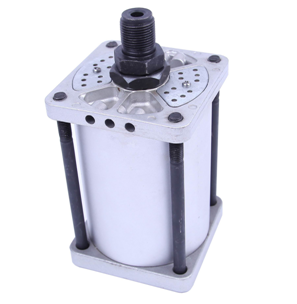

AP1002 Bore size 70mm,Round barrel with tie-rod air pump

AP1003 Bore size 70mm air change pump

AP1004 Bore size 80mm round barrel air pump

S.r.	Parts Code	Parts Name	S.r.	Parts Code	Parts Name
1	AP1003-1	Plunger Sleeve	15	AP1003-13	Muffler
2	AP1003-2	Thread Sealing	16	AP1003-14	Muffler Element
3	AP1003-3	Gland	17	GB70-85	Hexagon socket bolt M5*16
4	AP1003-4	Adjusting Nut	18	GB859-87	Spring Gasket ￠5
5	AP1003-5	Lower Cover	19	AP1003-15	Air Cylinder Seal
6	AP1003-6	Pump Body	20	GB3452.1-82	O-Ring 24*5.75
7	D2 6125	Shaft Y Sealing	21	AP1003-16	Air Bleed Piston
8	AP1003-7	Circlip	22	AP1003-17	Air Valve Cover
9	AP1003-8	Guide Ring	23	AP1003-18	Guide PTFE Ring
10	AP1003-9	Outer liner nut	24	GB3452.1-82	O-Ring 60*3.55
11	AP1003-10	Spring	25	AP1003-19	Piston
12	AP1003-11	Plunger	26	GB70-85	Hexagon socket bolt M6*16
13	AP1003-12	Baffle Plate	27	GB859-87	Spring Gasket ￠6
14	GB308-84	Steel Ball ￠3.5
