Aluminum 5-Way Solenoid Operated Directional Control Valve G1/8" -
G1/2"
25mm,30mm,35mm body width Herion type solenoid valve 3/2,4/2,5/2
Port size G1/8~G1/2 e.g 2636000,2630600,2637050,8020750,8020850
Quick Detail:
* 2630,263,802 series solenoid valve Herion Interchangeable
* Aluminum material Body width 25mm,30mm,35mm
* Pilot Operated,Inner Pilot type
* Two Position Three Way,Two Position Five Way,Two Position Four
way available
* Pipe joint and Namur joint type for option
* Din connector and outlead wire electricity connecting for
selectable
* High quality pilot armature ensure rapid and sensitive feedback
when connect eletricity
* IP65 class Electromagnetic Induction Coil,low consumption,long
service life
* Mature products,cost effectively
Applications:
263,2630,802 series Herion type solenoid valve used as directional
control component to change the direction of working medium to
drive a executor component normally a cylinder to realize a cycle
motion
Specifications:
ORDERING CODE |
802 | 0 | 750 | B |
Type | Action type and Initial State | Aperture Flow | Joint Pipe Form |
802:Herion Type Two position Three Way Solenoid Valve | 0:Single Coil Normal Closed | 750:6mm | Blank:Pipe Joint type |
1:Double Coil Normal Closed | 850:12mm | B:Namur Type |
2:Normal Open |
2630 | 60 | 0 | B |
Type | Action type | Exhuasting Form | Blank:Pipe Joint type |
2630:Herion type Two Position Four Way Solenoid valve | 60:Single Coil | 0:Direct exhausting | B:Namur Type |
70:Double Coil | 1:Underplate Guide exhausting |
263 | 6000 | B | | | |
Type | Action type and Aperture flow | Joint Pipe Form | |
263:Herion type Two Position Five Way Solenoid valve | 6000:Single Coil and 6mm Aperture | B:Namur Type |
6200:Double coil and 6mm Aperture |
7050:Single Coil and 12mm Aperture | B:Namur Type |
7250:Double Coil and 12mm Aperture |
SPECIFICATION |

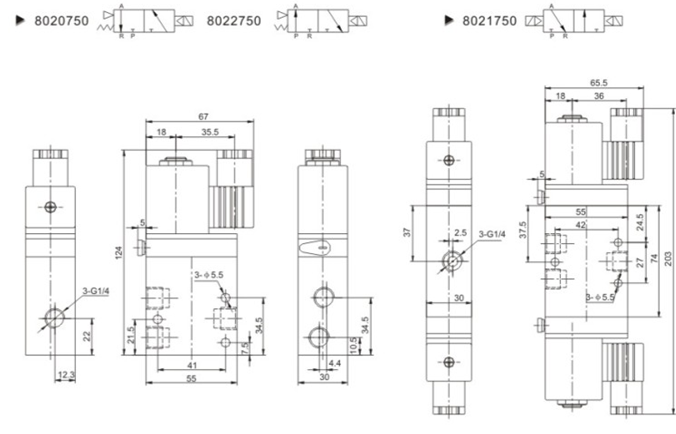

Model no | 8020750 | 8022750 | 8021750 | 8020850 | 8022850 | 2630600 | 2636000 | 2636200 | 2637050 | 2637250 |
Working Medium | Compressed 40 Micron Filtered Air |
Position And Way Numbers | Two Position Three Way | Two Postion Four Way | Two Position Five Way |
Effective Sectional Area | 10mm²(CV=0.56) | 40mm²(CV=2.23) | 4mm²(CV=0.23) | 10mm²(CV=0.56) | 40mm²(CV=2.23) |
Port Size | G1/4" | G1/2" | G1/8" | G1/4" | G1/2" |
Motion Pattern | Inner Pilot Operated |
Working Pressure | 0.15~1.0MPa |
Max.Pressure Resistance | 1.2MPa |
Operating Temperature | 5~50℃ |
Voltage Tolerance | ±10% |
Insulation& Protection Class | F Class IP65 |
