G1/4" Namur Standard Pilot Operated Solenoid Valve ASCO Equivalent

Ask Lasest Price
Brand Name :	FLUIDAC or OEM
Certification :	ISO9001
Model Number :	NG551A002MS
Price :	Get lastest price list
Delivery Time :	Within 20 days after receiving payment or deposit
Payment Terms :	TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal
Supply Ability :	20000 Pieces Per month

Add to Cart

Product Details
Company Profile

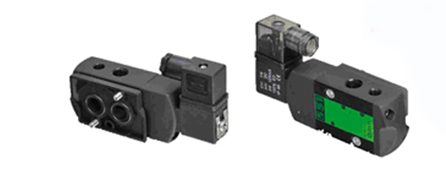

G1/4" Namur Standard Pilot Operated Solenoid Valve ASCO Equivalent

G1/4" Namur Standard Pilot Operated Solenoid Valve ASCO Equivalent

ASCO type Namur Solenoid valve 3/2 and 5/2 Port size G1/4 NSCG551A001MS,NG551A002MS with hand operator

Quick Detail:

* NG55 series Namur solenoid valve Asco interchangeable
* Motion pattern by solenoid pilot operated
* Two position three way and two position five way
* Epoxy Resin Moulded coil available for option
* With Namur connect interface
* With hand operator

Applications:

NG551 ASCO type series Solenoid valve used as directional control component to change the direction of working medium to drive a executor component normally a cylinder to realize a cycle motion
Namur standard connection can be assembling as 3/2 closed or 5/2 closed to control single acting and double acting actuator

Specifications:

ORDERING CODE
N	SC	G551	A001	220VAC
Type	Coil type	Port size	Action type	Voltage
N:Namur Type solenoid valve Asco type	SC:Epoxy Resin Coil	G551:inlet G1/4 Exhausting G1/8	A001:Single action single coil	AC220V:220VAC
				AC110V:110VAC
	Blank:Standard coil		A002:Doulbe action Double coil	DC24V:24VDC
				AC24V:24VAC
				DC12V:12VDC

SPECIFICATION
MODEL	N series Namur Solenoid valve Asco type
Working Fluid	Filtered Compressed Air
Position And Way Numbers	3/2 and 5/2
Rated Flow	700L/Min(CV=1.32)
Working Pressure	0.2~1.0MPa
Ambient&Fluid Temp	-25~60℃
Motion Pattern	Solenoid pilot Operated
Body Material	Aluminum Alloy
Insulation&Protection Class	F Class IP65
Seals Material	NBR and PUR
Voltage Tolerance	±10%
Standard Voltage	AC220V/DC24V
Power consumption	Holding: AC:4VA DC:3W
Port Size	Inlet G1/4" Exhuasting G1/8

Component Parts List
NO.	Decription
1	Pilot Kits
2	Piston Kits
3	Left Bracket
4	O Ring
5	O Ring
6	Flat Ring
7	Bracket
8	Valve Shaft
9	Srping
10	Tapping Screw with Gasket
11	Inner Hexagonal Nut Bolt
12	Tinny Cover
13	O Ring
14	Right Bracket
15	Valve Body
16	Seal
17	Spring Shield Ring
18	Subbase
19	Subbase Seal
20	Inner Hexagonal Nut Bolt

Pneumatic valve, Namur valve,Solenoid Pilot Operated solenoid valve
