1.0mm,1.5mm Orifice 3/2 Direct Acting Group Pneumatic Solenoid Valve

Ask Lasest Price
Brand Name :	FLUIDAC or OEM
Certification :	ISO9001
Model Number :	3V1-06
Price :	USD3--
Delivery Time :	Within 20 days after receiving payment or deposit
Payment Terms :	TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal
Supply Ability :	20000 Pieces Per month

Add to Cart

Product Details
Company Profile

1.0mm,1.5mm Orifice 3/2 Direct Acting Group Pneumatic Solenoid Valve

1.0mm,1.5mm Orifice 3/2 Direct Acting Group Pneumatic Solenoid Valve

1.0mm Orifice two position three way direct acting compact Solenoid valve 3V1 series port size M5x0.8,G1/8 e.g 3V1-06 Airtac Equvalent

Quick Detail:

* 3V1 series compact solenoid valve airtac interchangeable

* Aluminum alloy material Valve Body

* Direct acting motion patter,two position three way,Rapid respond of directional change

* Orifice size 1.0mm,1.5mm

* Pipe joint and Plate type connecting for option

* 3V1 series can be integrate with base for group valves save mounting space effective

* Low power consumption

* Mature products,cost effectively

Applications:

3V1 Series direct acting solenoid valve used as directional control component to change the direction of working medium to drive a executor component normally a cylinder to realize a cycle motion

Specifications:

ORDERING CODE
3V1	06	B	AC220V	W
Type	Joint Port size	Connecting type	Voltage	Electricity Connect Form
3V1:3V1 Series Two Position Three Way Solenoid Valve Direct Acting type	M5:M5X0.8	Blank:Pipe Joint type	AC220V:220VAC	Blank:Standard Connector
	M5:M5X0.8	Blank:Pipe Joint type	AC110V:110VAC	LD:Brown Din Connector with Light Indicator
	06:G1/8"	B:Plate Connect	DC24V:24VDC	LD1:White Din Connector With Light Indicator
			AC24V:24VAC	W:Out-leading Wire
			DC12V:12VDC	W:Out-leading Wire

SPECIFICATION
Model no(34mm)	3V1-M5	3V1-06
Working Medium	Compressed 40 Micron Filtered Air
Body Material	Aluminum Alloy
Position And Way Numbers	Two Position-Three Way
Port Size	M5x0.8	G1/8"
DN(mm)	1.0mm
Motion Pattern	Direct Acting
Working Pressure	0~0.8MPa
Max.Pressure Resistance	1.0MPa
Operating Temperature	5~60℃
Voltage Tolerance	±10%
Power consumption	AC:4.5VA DC:3W
Insulation&Protection Class	F Class IP65
Highest motion Frequency	10 cycle/Sec
Minimum Activate Time	0.05 Sec

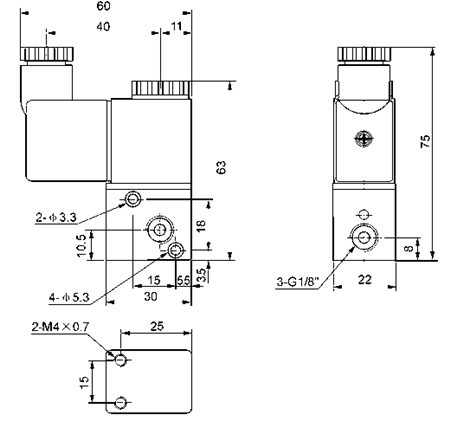

3V1-06

3V1-06B

Pneumatic valve,Direct Acting Solenoid valve,compact mini valve
