SY5120 G1/4 Two Position Five Way Solenoid Valve SMC Equivalent
SMC type SY series Solenoid valve two position five way port size
M5,G1/8,G1/4,G3/8 e.g SY5120-1/8-220VAC-L
SY3120, 3220, SY5120, 5220, SY7120, 7220 SMC 5/2 way pneumatic
solenoid operated valve for air directional control with Aluminum Alloy body material
Quick Detail:
* SY series solenoid valve SMC interchangeable
* Two position Five way,Three Position Five Way
* L Type Socket,G Type Wire outleading,D type Din Connector
* Port size M5x0.8,G1/8,G1/4,G3/8
* Compact design small volume
*With Manifold block for group valve joint
*High working frequency up to 50cycle/Sec
*Fast respond,low consumption
Applications:
SY Series SMC Type solenoid valve act as control equipment for air
directional control in Pneumatic automation systems.
Specifications:
ORDERING CODE |
SY5 | 120 | 1/4 | AC220V | L |
Type | Function type | Port size | Voltage | Electricity Connect |
SY3:SY3000 Series SMC type Solenoid valve | 120:Two Position Five Way Single coil | M5:M5x0.8 | AC220V:220VAC | L:Wire outleading |
SY5:SY5000 Series SMC type Solenoid Valve | 220:Two Position Five way Double coil | 1/8:G1/8" | DC24V:24VDC |
SY7:SY7000 Series SMC type Solenoid Valve | 320:Two Position Five Way Double coil Center Close | 1/4:G1/4" | AC110V:110VAC | S:Socket Type |
SY9:S7000 Series SMC type Solenoid Valve | 420:Two Position Five Way Double coil Center Exhuasting | 3/8:G3/8" | DC12V:12VDC |
520:Two Position Five Way Double coil Center Pressure |
SPECIFICATION |
Model no | SY Series |
Working Medium | Compressed 40 Micron Filtered Air |
Body Material | Aluminum Alloy |
Position And Way Numbers | Two Position-Five Way |
Motion Pattern | Inner Pilot Operated |
Port Size(Main body) | M5x0.8 G1/8 G1/4 G3/8 |
Pressure Endurance | 1.05MPa |
Working Pressure | 0.15~0.8MPa |
Operating Temperature | 5~60℃ |
Voltage Tolerance | ±10% |
Power Consumption | AC:4.5VA DC:3.0W |
Protection Class&Insulation | F Class IP65 |
Maximum Working Frequency | 50cycle/Sec |
Minimum Actuating time | 0.05Sec |
Lubrication | Not Required |
SY3120
SY5120
SY7120
valve island with adapter connector and DB cable plug

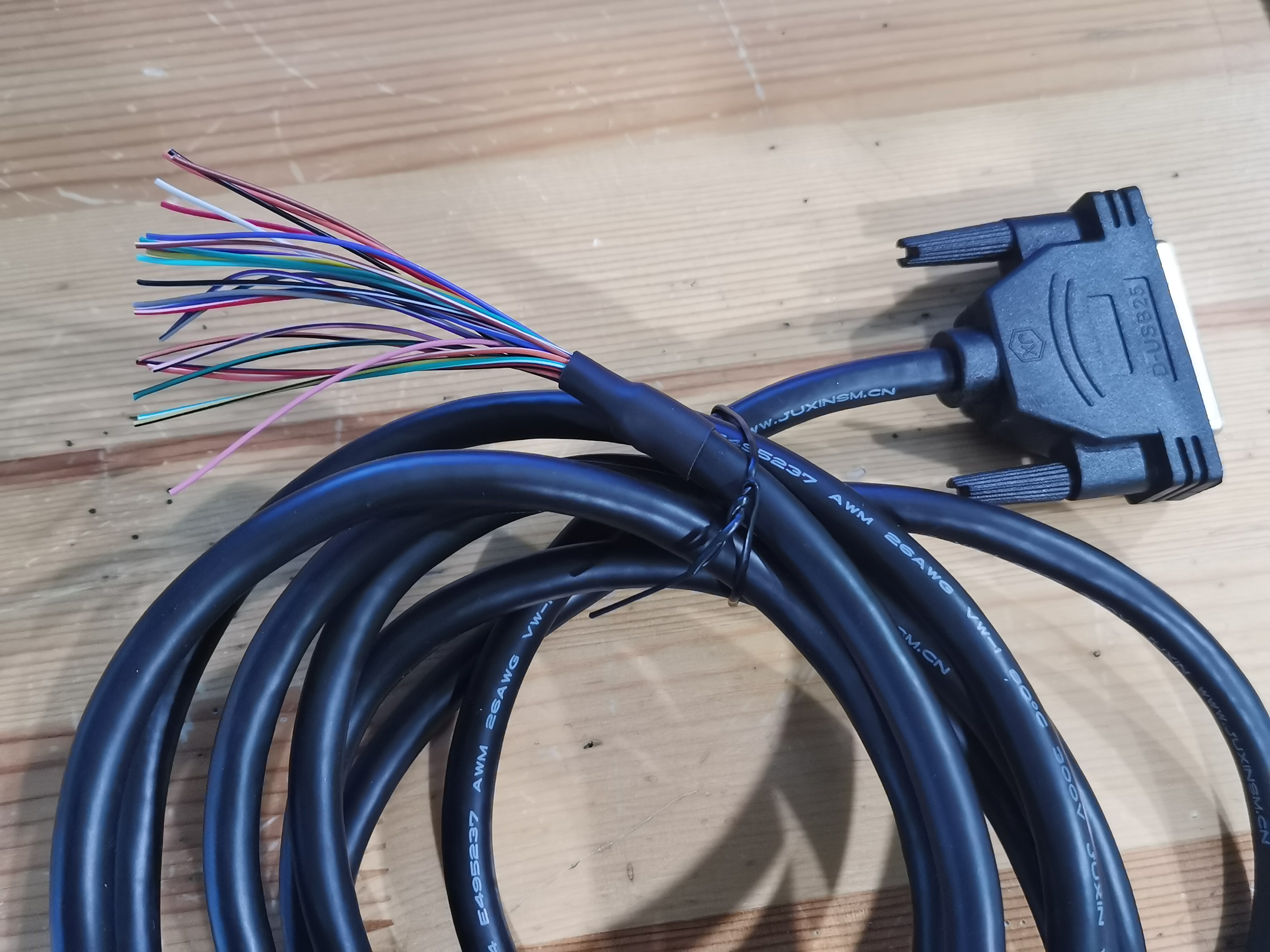

DB cable plug
