3-Way Mechanical Control Valve

Ask Lasest Price
Brand Name :	FLUIDAC or OEM
Certification :	ISO9001
Model Number :	JMJ-07
Price :	USD1.5--
Delivery Time :	Within 20 days after receiving payment or deposit
Payment Terms :	TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal
Supply Ability :	20000 Pieces Per month

Add to Cart

Product Details
Company Profile

3-Way Mechanical Control Valve

Aluminum Alloy G1/4" 3-Way Mechanical Control Valve 0 - 1MPa

JMJ series Mechanical control valve Aluminum Die-cating body matieral two position three way port size G1/4 with Various Actuator Model.JMJ-07

Quick Detail:

*JMJ series mechanical valve

*Aluminum alloy Die-casting valve body

*Two position Three way

*Port size G1/4”

*Compact design,Flexible application

*Stable with long service life

*Cost effective

Applications:

JMJ series mechanical valve working by outside mechanical force to control directional switch,when outside force disappear,Actuator return to original situation.Mechanical control valve have memory function

Specifications:

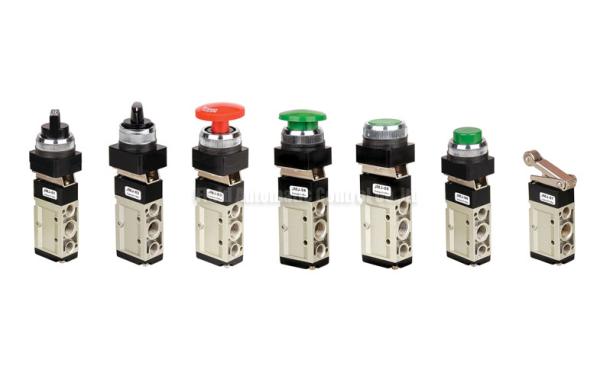

ORDERING CODE
JMJ	01
Type	Actuator Type
JMJ:JMJSeries Two Position Three Way Mechanical valve	01:Selective Knob
	02:Knob type extension
	03:Button type with Lock
	04:Mashroom Shape Button
	05:Flat Round Button type
	06:Convex Button
	07:Roller Type

SPECIFICATION
Model no	JMJ-01	JMJ-02	JMJ-03	JMJ-04	JMJ-05	JMJ-06	JMJ-07
Working Medium	Compressed 40 Micron Filtered Air
Body Material	Aluminum Alloy Die-casting
Effective Sectional Area	2.5mm²
Position And Way Numbers	Two Position-Three Way
Port Size	G1/4"
Working Pressure	0~1.0MPa
Operating Temperature	0~70℃

Pneumatic Valve, Mechanical valve,Machine control valve
