Aluminum 5-way and 3-Way mechanical control valve G1/8" machine control valve

Aluminum 5-way And 3-way Mechanical Control Valve G1/8" Machine Control Valve

XQ series Mechanical control valve two position three way and two position five way port size G1/8 and G1/4 with Various Actuator e.g XQ250620

Quick Detail:

* XQ series mechanical valve and Manual Operated valve

* Aluminum alloy valve body

* Two position Three way and Two position Five way

* Port size G1/8”,G1/4”

* Various actuator model for slection

* Compact design,Flexible application

* Stable with long service life

Applications:

XQ series mechanical control and Manual Operated valve working by outside mechanical force to control directional switch,when outside force disappear,Actuator return to original situation.Mechanical control valve have memory function

Specifications:

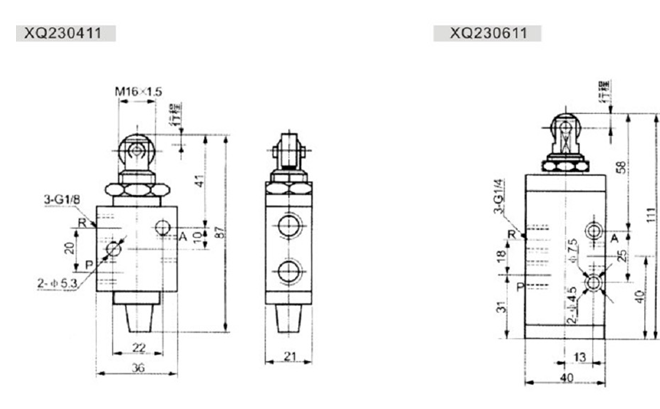

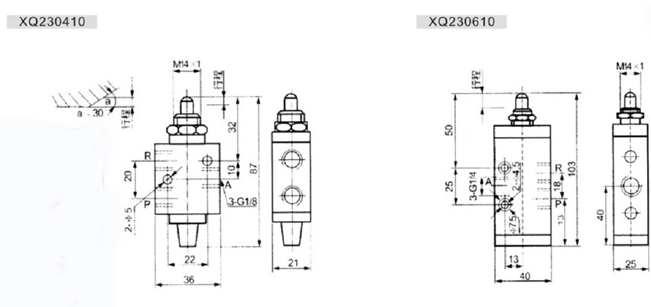

ORDERING CODE
XQ	25	06	20
Type	Code For Function Type	Port Size	Actuator Type
XQ:XQ Series Mechanical and Manual Operated Valve	25:Two Position Five Way	02:M5(2mm )	10:Ejector Rod Type Mechanical control
			11:Ejector Rod Roller Type Mechanical Control
			12:Lever Roller Type Mechanical Control
		04:G1/8"(4mm)	13:One Way Lever Roller Type Mechanical Control
	23:Two Position Three Way		20:Button Type
			20.1: Stop Type
		06:G1/4"(6mm)	21:Toggle type Manual Operated
			22:Hand Pull Type Manual Operated

SPECIFICATION
Model no	XQ Series
Working Medium	Compressed 40 Micron Filtered Air
Body Material	Aluminum Alloy
Position And Way Numbers	Two Position-Three Way And Two Position Five Way
Port Size	G1/8" And G1/4"
Working Pressure	0~0.8MPa
Pressure Endurance	1.2MPa
Operating Temperature	0~70℃

Pneumatic Valve, Mechanical valve,Manual Operated valve
