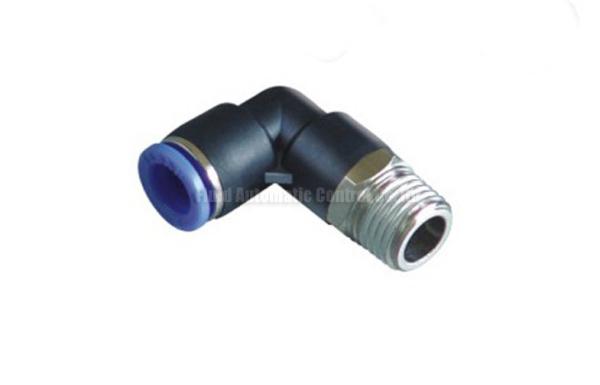

Push-in Pneumatic Fitting PC8-02 8mm Brass Elbow Type One Touch
Fitting
One touch quick push-in fitting straight,elbow,tee,branch
tee,plug,splicer,triple,banjo,reduction type,flow regulating
type,swivel type,stop type,check type,bulkhead type,tube size
4mm~16mm,inch size 5/32”~1/2”,thread 1/8”~1/2” PT,G,NPT,Metric
thread,e.g PC8-G02
Quick Detail:
* One touch quick push-in fitting
* Body material brass nickle plated
* Housing material PBT,white colour and black colour selectable
* Lock claw material stainless steel,tight and stable
* Round and oval sleeve for option,colour in black and blue
selectable
* Fast installation,easy and flexible connecting,saving space
* Diversfied model satisfy any need of piping work
* leak proof coated on thread to ensure good sealing peformance
* Threads available in G,PT,NPT,METRIC
* Tube size available metric 4,6,8,10,12,16 inch
5/32,3/16,1/4,5/16,3/8,1/2
* Straight,tee,branch tee,run tee,elbow,universal
elbow(Banjo),plug,splicer,reduction,flow regulator,swivel
type,triple type,thread extended type,bulkhead type,check type,stop
type
Applications:
One touch two touch quick push-in fitting used widely in
metallurgy,oil industrial,chemical,textile,aviation,mechanical
automation,transporation,electronics,medicine equipment,teching
equipment as airline connector
Specifications:
Specification |
Fluid Type | Air.Vacuum |
Working Pressure Range | 0~10.2Kgf/cm²(1.0Mpa) |
Negative Pressure | -750mmHg(10Torr) |
Pressure Resistance | 15.3Kgf/cm²(1.5Mpa) |
Operating Temperature | 0~60℃ |
Applicable Tubing type | /Nylon And Polyurethane |
Tube Outer Dia |
(Metric Size) |
Code | 4 | 6 | 8 | 10 | 12 | 14 |
DIA | Ø4 | Ø6 | Ø8 | Ø10 | Ø12 | Ø14 |
(Inch Size) |
Code | 5/32 | 3/16 | 1/4 | 5/16 | 3/8 | 1/2 |
DIA | Ø5/32 | Ø3/16 | Ø1/4 | Ø5/16 | Ø3/8 | Ø1/2 |
Thread Type and size | |
|
Taper Thread(R PT ) | |
Code | 01 | 02 | 03 | 04 | 06 | |
DIA | R1/8 | R1/4 | R3/8 | R1/2 | R3/4 | |
G Thread | |
Code | G01 | G02 | G03 | G04 | G06 | |
DIA | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | |
NPT Thread | |
Code | N01 | N02 | N03 | N04 | N06 | |
DIA | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | |
(Metric Size) | |
Code | M5 | M6 | M8 | M10 | | |
DIA | M5X0.8 | M6X1 | M8X1 | M10X1.25 | | |
