Brass Nickle Plated Pneumatic Stop Fitting For Pneumatic Automation
Connector System
Stop fitting brass nickle plated material tube size 4mm~12mm,inch
size 5/32”~1/2”,thread 1/8”~1/2” PT,G,NPT,Metric thread,e.g SPC8-02
Quick Detail:
* s series Stop fitting
* body material brass nickle plated
* housing material PBT
* lock claw material stainless steel,tight and stable
* plastic sleeve,black colour or blue colour,oval or round shape
for option
* fast installation,easy and flexible connecting,saving space
* leak proof coated on thread to ensure good sealing peformance
* threads available in G,PT,NPT,METRIC
* thread size 1/8”,1/4”,3/8”,1/2”
* tube size available metric 4,6,8,10,12 inch
5/32,3/16,1/4,5/16,3/8,1/2
* stope type structure,when disconnect the tube air flow completely
stop
Applications:
Stop fitting used widely in metallurgy,oil
industrial,chemical,textile,aviation,mechanical
automation,transporation,electronics,medicine equipment,teching
equipment as airline connector
Specifications:
Tube Outer Dia |
(Metric Size) |
Code | 4 | 6 | 8 | 10 | 12 | 14 |
DIA | Ø4 | Ø6 | Ø8 | Ø10 | Ø12 | Ø14 |
(Inch Size) |
Code | 5/32 | 3/16 | 1/4 | 5/16 | 3/8 | 1/2 |
DIA | Ø5/32 | Ø3/16 | Ø1/4 | Ø5/16 | Ø3/8 | Ø1/2 |
Thread Type and size | |
|
Taper Thread(R PT ) | |
Code | 01 | 02 | 03 | 04 | 06 | |
DIA | R1/8 | R1/4 | R3/8 | R1/2 | R3/4 | |
G Thread | |
Code | G01 | G02 | G03 | G04 | G06 | |
DIA | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | |
NPT Thread | |
Code | N01 | N02 | N03 | N04 | N06 | |
DIA | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | |
(Metric Size) | |
Code | M5 | M6 | M8 | M10 | | |
DIA | M5X0.8 | M6X1 | M8X1 | M10X1.25 | | |

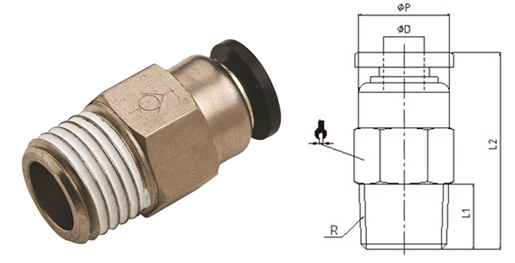

MODEL | ΦD | R | L1 | L2 | Φp |
|
SPC 04-01 | 4 | R1/8 | 7.5 | 27.5 | 10 | 10 |
SPC 06-01 | 6 | R1/8 | 7.5 | 27 | 12 | 12 |
SPC 06-02 | 6 | R1/4 | 9.5 | 27 | 12 | 14 |
SPC 08-01 | 8 | R1/8 | 7.5 | 29 | 14 | 14 |
SPC 08-02 | 8 | R1/4 | 9.5 | 29 | 14 | 14 |
SPC 08-03 | 8 | R3/8 | 10.5 | 29 | 14 | 17 |
SPC 10-02 | 10 | R1/4 | 9.5 | 37 | 17 | 17 |
SPC 10-03 | 10 | R3/8 | 10.5 | 37 | 17 | 17 |
SPC 10-04 | 10 | R1/2 | 13.5 | 37 | 17 | 21 |
SPC 12-02 | 12 | R1/4 | 9.5 | 38 | 20 | 21 |
SPC 12-03 | 12 | R3/8 | 10.5 | 38 | 20 | 21 |
SPC 12-04 | 12 | R1/2 | 13.5 | 38 | 20 | 21 |
MODEL | ΦD | R | L |
SPU 04 | 4 | 13 | 47 |
SPU 06 | 6 | 13 | 45 |
SPU 08 | 8 | 15 | 49.5 |
SPU 10 | 10 | 19 | 63 |
SPU 12 | 12 | 21.5 | 66.5 |
MODEL | ΦD | G | L1 | L2 | L3 | ΦP |
|
SPL04-G01 | 4 | G1/8 | 5.5 | 24.3 | 31 | 13 | 14 |
SPL06-G01 | 6 | G1/8 | 5.5 | 24.2 | 29.4 | 13 | 14 |
SPL06-G02 | 6 | G1/4 | 7.5 | 26.7 | 29.4 | 13 | 17 |
SPL08-G01 | 8 | G1/8 | 5.5 | 27 | 33 | 14.5 | 14 |
SPL08-G02 | 8 | G1/4 | 7.5 | 29.5 | 33 | 14.5 | 17 |
SPL08-G03 | 8 | G3/8 | 7.5 | 0.3 | 33 | 14.5 | 20 |
SPL10-G02 | 10 | G1/4 | 7.5 | 34.3 | 42.5 | 18 | 17 |
SPL10-G03 | 10 | G3/8 | 7.5 | 34.3 | 42.5 | 18 | 20 |
SPL10-G04 | 10 | G1/2 | 10 | 37.8 | 42.5 | 18 | 24 |
SPL12-G02 | 12 | G1/4 | 7.5 | 0.36 | 46.5 | 21 | 21 |
SPL12-G03 | 12 | G3/8 | 7.5 | 36 | 46.5 | 21 | 21 |
SPL12-G04 | 12 | G1/2 | 10 | 0.39 | 46.5 | 21 | 24 |
