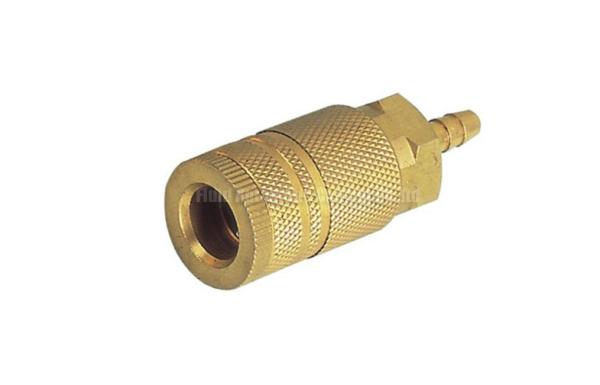

Pneumatic Tube Fittings , American Type Pneumatic Quick Coupler

    Buy cheap Pneumatic Tube Fittings , American Type Pneumatic Quick Coupler from wholesalers

    Buy cheap Pneumatic Tube Fittings , American Type Pneumatic Quick Coupler from wholesalers
    • Buy cheap Pneumatic Tube Fittings , American Type Pneumatic Quick Coupler from wholesalers

    Pneumatic Tube Fittings , American Type Pneumatic Quick Coupler

    Ask Lasest Price
    Brand Name : FLUIDAC or OEM
    Certification : ISO9001
    Model Number : UASH-20
    Price : USD0.5--
    Delivery Time : Within 20 days after receiving payment or deposit
    Payment Terms : TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal
    Supply Ability : 100000PCS Per month
    • Product Details
    • Company Profile

    Pneumatic Tube Fittings , American Type Pneumatic Quick Coupler


    Pneumatic Tube Fittings , American Type Pneumatic Quick Coupler


    Quick Detail:


    *American type pneumatic quick coupler

    *Body material brass,stainless steel,steel,aluminum available

    *Working pressure 0-1.0MPa

    *One-hand operated,convenient and rapid connecting

    *Wide tempreature range -20~100℃

    *Unbaffled design poppet,stable and reliable

    *Various model for flexible connecting

    *Male female thread socket,hose barb socket,fast compression with spring type socket

    *Male female thread plug,hose barb plug,fast compression with spring type plug

    *With spring for tube protection selectable

    *Tube size I.D 6mm,8mm,10mm

    *Thread size 1/4”,3/8”.1/2”

    *Thread in BSP,BSPT for option

    *Compact design,samll volume,long service life


    Applications:


    Quick coupler used widely in metallurgy,oil industrial, chemical,textile,aviation,mechanical automation, transporation, electronics, medicine equipment,teching equipment as airline connector

    Quick coupler use especially in air tool area to connect the pipeline.


    Specifications:


    1,working Medium:Compressed air

    2,Body material: Brass,stainless steel,steel,aluminum

    3,Maximum working pressure:35bar

    4,Working temperature: -20~100℃

    5,Seal Material:NBR


    Model No


    Thread Size or Tube I.D

    Description

    Material

    Surface Treatment

    MSF-20


    1/4"

    MILTON Type Socket Female

    Brass/Steel/Stainless Steel/Aluminum

    Nickle-Plated/Galvanization/Chrome-plated/Aluminum Anodizing

    MSF-30

    3/8"

    MSF-40

    1/2"

    MSM-20


    1/4"

    MILTON Type Socket Male

    Brass/Steel/Stainless Steel/Aluminum

    Nickle-Plated/Galvanization/Chrome-plated/Aluminum Anodizing

    MSM-30

    3/8"

    MSM-40

    1/2"

    MSH-20


    Ø6

    MILTON Type Socket With Hose Barb

    Brass/Steel/Stainless Steel/Aluminum

    Nickle-Plated/Galvanization/Chrome-plated/Aluminum Anodizing

    MSH-30

    Ø8

    MSH-40

    Ø10

    MPF-20


    1/4"

    MILTON Type Plug Female

    Brass/Steel/Stainless Steel/Aluminum

    Nickle-Plated/Galvanization/Chrome-plated/Aluminum Anodizing

    MPF-30

    3/8"

    MPF-40

    1/2"

    MPM-20


    1/4"

    MILTON Type Plug Male

    Brass/Steel/Stainless Steel/Aluminum

    Nickle-Plated/Galvanization/Chrome-plated/Aluminum Anodizing

    MPM-30

    3/8"

    MPM-40

    1/2"

    MPH-20


    Ø6

    MILTON Type Plug With Hose Barb

    Brass/Steel/Stainless Steel/Aluminum

    Nickle-Plated/Galvanization/Chrome-plated/Aluminum Anodizing

    MPH-30

    Ø8

    MPH-40

    Ø10


    Model No


    Thread Size or Tube I.D

    Description

    Material

    Surface Treatment

    TSF-20


    1/4"

    TURFLATE Type Socket Female

    Brass/Steel/Stainless Steel/Aluminum

    Nickle-Plated/Galvanization/Chrome-plated/Aluminum Anodizing

    TSF-30

    3/8"

    TSF-40

    1/2"

    TSM-20


    1/4"

    TURFLATE Type Socket Male

    Brass/Steel/Stainless Steel/Aluminum

    Nickle-Plated/Galvanization/Chrome-plated/Aluminum Anodizing

    TSM-30

    3/8"

    TSM-40

    1/2"

    TSH-20


    Ø6

    TURFLATE Type Socket With Hose Barb

    Brass/Steel/Stainless Steel/Aluminum

    Nickle-Plated/Galvanization/Chrome-plated/Aluminum Anodizing

    TSH-30

    Ø8

    TSH-40

    Ø10

    TPF-20


    1/4"

    TURFLATE TYPE Type Plug Female

    Brass/Steel/Stainless Steel/Aluminum

    Nickle-Plated/Galvanization/Chrome-plated/Aluminum Anodizing

    TPF-30

    3/8"

    TPF-40

    1/2"

    TPM-20


    1/4"

    TURFLATE Type Plug Male

    Brass/Steel/Stainless Steel/Aluminum

    Nickle-Plated/Galvanization/Chrome-plated/Aluminum Anodizing

    TPM-30

    3/8"

    TPM-40

    1/2"

    TPH-20


    Ø6

    TURFLATE Type Plug With Hose Barb

    Brass/Steel/Stainless Steel/Aluminum

    Nickle-Plated/Galvanization/Chrome-plated/Aluminum Anodizing

    TPH-30

    Ø8

    TPH-40

    Ø10


    Model No


    Thread Size or Tube I.D

    Description

    Material

    Surface Treatment

    ASF-20


    1/4"

    ARO Type Socket Female

    Brass/Steel/Stainless Steel/Aluminum

    Nickle-Plated/Galvanization/Chrome-plated/Aluminum Anodizing

    ASF-30

    3/8"

    ASF-40

    1/2"

    ASM-20


    1/4"

    ARO Type Socket Male

    Brass/Steel/Stainless Steel/Aluminum

    Nickle-Plated/Galvanization/Chrome-plated/Aluminum Anodizing

    ASM-30

    3/8"

    ASM-40

    1/2"

    ASH-20


    Ø6

    ARO Type Socket With Hose Barb

    Brass/Steel/Stainless Steel/Aluminum

    Nickle-Plated/Galvanization/Chrome-plated/Aluminum Anodizing

    ASH-30

    Ø8

    ASH-40

    Ø10

    APF-20


    1/4"

    ARO Type Plug Female

    Brass/Steel/Stainless Steel/Aluminum

    Nickle-Plated/Galvanization/Chrome-plated/Aluminum Anodizing

    APF-30

    3/8"

    APF-40

    1/2"

    APM-20


    1/4"

    ARO Type Plug Male

    Brass/Steel/Stainless Steel/Aluminum

    Nickle-Plated/Galvanization/Chrome-plated/Aluminum Anodizing

    APM-30

    3/8"

    APM-40

    1/2"

    APH-20


    Ø6

    ARO Type Plug With Hose Barb

    Brass/Steel/Stainless Steel/Aluminum

    Nickle-Plated/Galvanization/Chrome-plated/Aluminum Anodizing

    APH-30

    Ø8

    APH-40

    Ø10


    Model No


    Thread Size or Tube I.D

    Description

    Material

    Surface Treatment

    UASF-20


    1/4"

    USA UNIVERSAL Type Socket Female

    Brass/Steel/Stainless Steel/Aluminum

    Nickle-Plated/Galvanization/Chrome-plated/Aluminum Anodizing

    UASF-30

    3/8"

    UASF-40

    1/2"

    UASM-20


    1/4"

    USA UNIVERSAL Type Socket Male

    Brass/Steel/Stainless Steel/Aluminum

    Nickle-Plated/Galvanization/Chrome-plated/Aluminum Anodizing

    UASM-30

    3/8"

    UASM-40

    1/2"

    UASH-20


    Ø6

    USA UNIVERSAL Type Socket With Hose Barb

    Brass/Steel/Stainless Steel/Aluminum

    Nickle-Plated/Galvanization/Chrome-plated/Aluminum Anodizing

    UASH-30

    Ø8

    UASH-40

    Ø10
