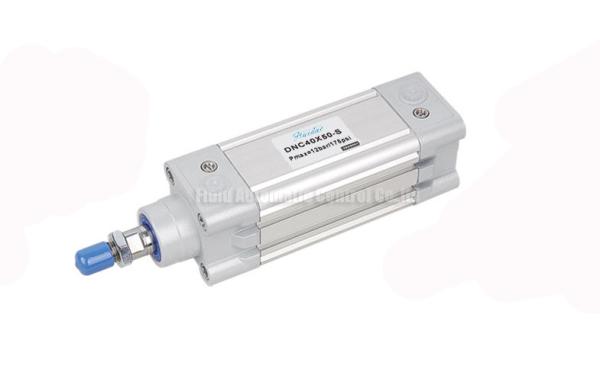

    ISO15552 DNC Series Double Acting Pneumatic Air Cylinder DNC-50-100-PPV-A

    Ask Lasest Price
    Brand Name : FLUIDAC or OEM
    Certification : ISO9001
    Model Number : DNC40-50-PPV-A
    Price : USD10-
    Delivery Time : Within 20 days after receiving payment or deposit
    Payment Terms : TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal
    Supply Ability : 10000 Pieces Per month
    • Product Details
    • Company Profile

    ISO15552 DNC Series Double Acting Pneumatic Air Cylinder DNC-50-100-PPV-A


    ISO15552 DNC Series Double Acting Pneumatic Air Cylinder DNC-50-100-PPV-A

    ISO15552 standard (ISO6431 VDMA24562) square DNC double acting Pneumatic air cylinder Bore size 32mm-125mm e.g. DNC40-50-PPV-A with magnet and adjustable air buffer and self-lubricating bearing Festo Standard


    Quick Detail:


    *ISO15552/ISO 6431 VDMA 24562 standard Pneumatic air cylinder

    * With slot on cylinder for mounting sensors,sensor model no.CS1-M

    * With magnet and adjustable air buffer cushioning

    * Square barrel standard ,Economical mickey mouse barrel available

    * Piston rod #45(ASTM-1045) steel chrome-plated ,Stainless steel(SS304) piston rod is available

    * With self-lubricating bearing,lubrication free

    * Bore size 32mm,40mm,50mm,63mm,80mm,100mm,125mm

    * Cylinder kits,repair kits and accessories available

    * Stable design,long service life more than 4000KM


    Specifications:


    ORDERING CODE

    DNC

    63

    50

    PPV

    A

    S2

    DNC:

    Bore Size

    Stroke

    Air Buffer

    With Magnet

    S2:

    32:32mm

    Double piston rod

    Square Barrel type

    40:40mm

    K2:

    50:50mm

    Piston rod Female Thread

    DNCM:

    63:63mm

    K5:

    80:80mm

    Non-Standard thread

    Mickey Mouse Barrel type

    100:100mm

    K8:

    125:125mm

    Piston rod extension


    SPECIFICATION

    Bore size(mm)

    32

    40

    50

    63

    80

    100

    125

    working Medium

    Filtered compressed air

    Motion Pattern

    Double action

    Pressure Endurance

    1.5MPa

    Operating pressure range

    0.1~1.0MPa

    Ambient Temperature

    5~60ºC

    Buffer cushioning

    Air buffer at both ends

    Operating Speed

    50-500mm/s

    Life Cycle

    Note less than 4000KM

    Lubricate

    Self-Lubricating

    Port size

    G1/8

    G1/4

    G3/8

    G1/2


    DNC…PPV-A

    Bore

    Size

    AM

    B

    D2

    D5

    D7

    E

    EE(G)

    J3

    J4

    KK

    L2

    L3

    L4

    L5

    L6

    L7

    L8

    SW1

    SW2

    VD

    WH

    ZB

    32

    22

    30

    12

    32.5

    M6

    45

    1/8

    6

    5.2

    M10×1.25

    41.6

    62.8

    4

    25.1

    16

    3.3

    10

    10

    6

    18

    26

    120

    40

    24

    35

    16

    38

    M6

    54

    1/4

    8

    6

    M12×1.25

    44

    77

    4

    29.6

    16

    3.6

    10.5

    13

    6

    21.5

    30

    135

    50

    32

    40

    20

    46.5

    M8

    64

    1/4

    10

    8.5

    M16×1.5

    51

    78

    4

    29.6

    17

    5.1

    11.5

    17

    8

    28

    37

    143

    63

    32

    45

    20

    56.5

    M8

    75

    3/8

    12.4

    10

    M16×1.5

    54

    87

    4

    35.6

    17

    6.6

    15

    17

    8

    28.5

    37

    158

    80

    40

    45

    25

    72

    M10

    93

    3/8

    12.5

    8

    M20×1.5

    62.4

    95.2

    4

    35.9

    17

    10.5

    15.7

    22

    10

    34.7

    46

    174

    100

    40

    55

    25

    89

    M10

    110

    1/2

    11.8

    10

    M20×1.5

    69.8

    100.4

    4

    38.8

    17

    8

    19.2

    22

    10

    38.2

    51

    189

    125

    54

    60

    32

    110

    M12

    134

    1/2

    13

    8

    M27×2

    83

    124

    6

    44.7

    22

    14

    20.5

    27

    8

    46

    65

    225


    DNC…PPV-A-S2

    BORE SIZE

    B

    L15

    VD

    ZB

    32

    30

    46

    18

    120

    40

    35

    165

    21.5

    135

    50

    40

    180

    28

    143

    63

    45

    195

    28.5

    158

    80

    45

    220

    34.7

    174

    100

    55

    240

    38.2

    189

    125

    60

    290

    46

    225


    Pneumatic cylinder,Air cylinder, Linear actuator,Gas cylinder,ISO cylinder
