    Stainless Steel 3000psi in Line Check Valve G1/8" , G1/4" , G1/2"

    Ask Lasest Price
    Brand Name : FLUIDAC or OEM
    Certification : ISO9001
    Model Number : MCV-02M-3
    Price : USD2--
    Delivery Time : Within 20 days after receiving payment or deposit
    Payment Terms : TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal
    Supply Ability : 20000 Pieces Per month
    • Product Details
    • Company Profile

    Stainless Steel 3000psi in Line Check Valve G1/8" , G1/4" , G1/2"

    Quick Detail:


    * MCV Mini high pressure in line check valve

    * Maximum working pressure up to 3000PSI

    * Body Material Stainless steel 316 or brass for option

    * Port Size G1/8”,G1/4”,G3/8,G1/2”

    * Compact design,small volume,light weight

    * Easy operation,sensitive of Respond

    * Various end thread type for option,easy for joint pipe-work

    * Flow direction one way type

    * Directly pipe joint mounting,easy and convenient

    * Stable design,long serive life


    Applications:


    MCV series one way non-return valve used for protecting Pneumatic system to keep from working medium return when the in pressure lower than the out pressure,with MCV series check valve,air flow direction will be one way to keep from air mixed to occur harm to system or damage to working components.


    Specifications:


    ORDERING CODE

    MCV

    02

    M

    3

    Type

    Port Size

    Ends Thread Type

    Spring Open Pressure

    MCV:MCV Mini In Line Check Valve

    01:G1/8"

    M:Male Thread

    1/3:1/3PSI

    02:G1/4"

    3:3PSI

    03:G3/8"

    F:Female Thread

    10:10PSI

    04:G1/2

    25:25PSI


    SPECIFICATION

    Model no

    MCV-01

    MCV-02

    MCV-03

    MCV-04

    Body Material

    SS316 Material or Brass Materil

    Port Size

    G1/8"

    G1/4"

    G3/8"

    G1/2"

    Maximum Working Pressure

    3000PSI~6000PSI

    Seal Material

    NBR,VITON

    Liquid Coeficient

    0.16

    0.47

    1.47

    1.68

    Operating Temperature

    –20~120℃

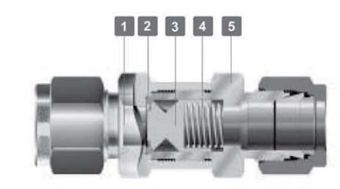

    MCV PARTS MATERIAL LIST

    ITEM NO

    PARTS NAME

    MATERIAL

    1

    Body

    A.I.S.I316

    2

    O-ring

    VITON

    3

    Poppet

    A.I.S.I316

    4

    Spring 1/3Psi

    A.I.S.I302

    Spring 3Psi

    A.I.S.I302

    Spring 10Psi

    A.I.S.I302

    Spring 25Psi

    A.I.S.I302

    5

    End

    A.I.S.I316


    Model No

    Inlet

    outlet

    L

    I

    H1

    MCV-01M

    G1/8

    G1/8

    50.5

    30.5

    19

    MCV-01F

    G1/8

    G1/8

    54

    30.5

    MCV-02M

    G1/4

    G1/4

    56.5

    30.5

    MCV-02F

    G1/4

    G1/4

    60.5

    30.5

    MCV-03M

    G3/8

    G3/8

    60.5

    30.5

    19

    MCV-03F

    G3/8

    G3/8

    60.5

    30.5

    MCV-04M

    G1/2

    G1/2

    93

    59.2

    32

    MCV-04F

    G1/2

    G1/2

    93

    59.2
