25mm Stroke Oil Shock Absorber For Automation Coveyor System , Hydraulic speed controller
Shock Absorber AC AD series Body Thread from M8~M64 e.g AD25-25-1 with cap speed adjustable
Quick Detail:
* AC/AD series shock absorber with self-compensation or speed adjustable
* Eliminate the vibration and impact of Non-required mechanical motion effectively
* Keep working Environment in low noise
* Speed up mechanical motion efficiency,Increasing the production capacity
* eep mechanical equipment safety in working,extend the machine service life
* Body material 45# steel (ASTM-1045)
* With high impact speed absorbtion,max Engergy consumption
* Body thread from M8~M64 for widely Option
* Double direction rod for option
* Spring return with good response,high accuracy
* High speed,medium speed,low speed for option
* Stable design,high efficiency,Long service life
Applications:
Shock Absorber used widely in the mechanical manipulators,Material feeder equipment,Printing machine,Coveyor system,Lifing machine,Electronical Mechanisam,Laboratory,Techning,Construction,woodwork,aircraft trasnpration industrial,National defense equpment,Medical equipment,Environment Protection for the application require to Eliminate the vibration and impact of Non-required mechanical motion,low noise Environment etc
Specifications:

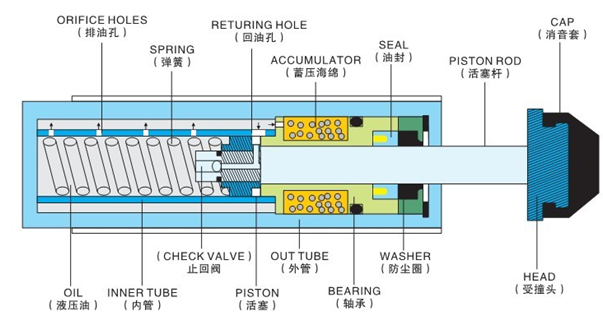

When piston rod is impacted,it will drive piston to press oil in inner tube.Oil will be pressed out through orifice holes of inner tube,Meantime,the oil returns to inner tube through returning hole of inner tube.
After outside force vanished,spring makes piston rod immediately return to its positioin.Oil will return to inner tube through check valve.Then shock absorber will return to the original situation waiting for next action
| ORDERING CODE |
| AC | 25 | 25 | 2 | N |
| AC:Shock Absorber Self Compenssation Multi-hole non-adjustable | Body Male Thread | Stroke | 1:High Speed | N:Without Cap |
| 08:M8 |
| 10:M10 |
| 12:M12 |
| AD:Shock Absorber Adjustable | 14:M14 | 2:Middle Speed |
| 20:M20 |
| 25:M25 |
| 27:M27 | 3:Low speed | Blank:With Cap |
| ACD:Shock Absorber Double Rod type | 33:M33 |
| 36:M36 |
| 42:M42 | 5:AD Speed Control Type |
| 45:M45 |
| 64:M64 |
| SPECIFICATION |
| Item | Stroke | Max.energy | Hour.energy | Max.effective weight(kg) | Max.codlision speed(m/s) | Ambient andfluid temperature |
| (mm) | absorpthon (Nm) | absorpthon (Nm) | 1 | 2 | 3 | 1 | 2 | 3 |
| AC-0806 | 6 | 2 | 1200 | 0.5 | 2 | 6 | 2 | 1 | 0.5 | -10~80℃ |
| AC-1005 | 5 | 3 | 3600 | 1 | 3 | 7 | 3 | 1.5 | 0.8 | -10~80℃ |
| AC-1008 | 8 | 4 | 5000 | 2 | 4 | 9 | 3 | 1.5 | 0.8 | -10~80℃ |
| AC-1210 | 10 | 5 | 10000 | 5 | 10 | 30 | 2 | 1.5 | 0.8 | -10~80℃ |
| AC-1412 | 12 | 15 | 30000 | 8 | 50 | 100 | 3 | 1.5 | 0.8 | -10~80℃ |
| AC-1416 | 16 | 20 | 35000 | 10 | 70 | 150 | 3 | 1.5 | 0.8 | -10~80℃ |
| AC-2020 | 20 | 40 | 40000 | 30 | 200 | 700 | 3.5 | 2 | 1 | -10~80℃ |
| AC-2050 | 50 | 60 | 60000 | 60 | 400 | 1200 | 3.5 | 2 | 1 | -10~80℃ |
| AC-2525 | 25 | 80 | 70000 | 200 | 800 | 1500 | 4 | 2.5 | 1 | -10~80℃ |
| AC-2540 | 40 | 120 | 75000 | 300 | 1200 | 2000 | 4 | 2.5 | 1 | -10~80℃ |
| AC-3660 | 60 | 250 | 120000 | 400 | 1500 | 2400 | 4 | 2.5 | 1 | -10~80℃ |
| AD-1410 | 10 | 20 | 25000 | 80 | 3 | -10~80℃ |
| AD-2016 | 16 | 25 | 30000 | 200 | 3.5 | -10~80℃ |
| AD-2525 | 25 | 85 | 70000 | 400 | 3.5 | -10~80℃ |
| AD-2540 | 40 | 100 | 80000 | 700 | 3.5 | -10~80℃ |
| AD-3650 | 50 | 300 | 100000 | 1400 | 3 | -10~80℃ |
| AD-4225 | 25 | 260 | 125000 | 3000 | 3.5 | -10~80℃ |
| AD-4250 | 50 | 500 | 150000 | 4000 | 4.5 | -10~80℃ |
| AD-4275 | 75 | 750 | 180000 | 6000 | 4.5 | -10~80℃ |
| AD-6450 | 50 | 12000 | 1500000 | 12727 | 1.5 | -10~80℃ |
| AD-64100 | 100 | 24000 | 2000000 | 18181 | 1.5 | -10~80℃ |
| AD-64150 | 150 | 36000 | 2500000 | 23636 | 1.5 | -10~80℃ |

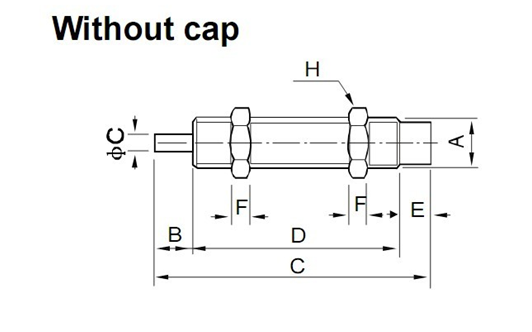

| Model/Symbol | A | B | C | D | E | F | G | H |
| AC-0806 | M8×1.0 | 6 | 44 | 33 | 5 | 3 | 2.8 | 11 |
| AC-1005 | M10×1.0 | 5 | 32.7 | 22.9 | 4.8 | 3 | 3 | 12.7 |
| AC-1008 | M10×1.0 | 8 | 51 | 38 | 5 | 3 | 3 | 12.7 |
| AC-1210 | M12×1.0 | 10 | 60 | 45.5 | 4.5 | 4 | 3 | 14 |
| AC-1412 | M14×1.5 | 12 | 88 | 67 | 9 | 6 | 4 | 19 |
| AC-1416 | M14×1.5 | 16 | 111 | 86 | 9 | 6 | 4 | 19 |
| Model/Symbol | A | B | C | D | E | F | G | H | I | J |
| AC-0806 | M8×1.0 | 6 | 52.4 | 33 | 5 | 3 | 2.8 | 6.6 | 8.4 | 11 |
| AC-1005 | M10× 1.0 | 5 | 41.5 | 22.9 | 4.8 | 3 | 3 | 8.6 | 8.5 | 12.7 |
| AC-1008 | M10× 1.0 | 8 | 59.5 | 38 | 5 | 3 | 3 | 8.6 | 8.5 | 12.7 |
| AC-1210 | M12× 1.0 | 10 | 69.5 | 45.5 | 4.5 | 4 | 3 | 10.3 | 9.5 | 14 |
| AC-1412 | M14× 1.5 | 12 | 102.5 | 67 | 9.0 | 6 | 4 | 12 | 14.5 | 19 |
| AC-1416 | M14× 1.5 | 16 | 125.5 | 125.5 | 9 | 6 | 4 | 12 | 14.5 | 19 |
| AC-2020 | M20× 1.5 | 20 | 146.5 | 146.5 | 9 | 8 | 9 | 18 | 16.5 | 26 |
| AC-2050 | M20× 1.5 | 50 | 233.5 | 158 | 9 | 8 | 9 | 18 | 16.5 | 26 |
| AC-2525 | M25× 1.5 | 25 | 154.3 | 101 | 9 | 10 | 8 | 22 | 18.3 | 32 |
| AC-2540 | M25×1.5 | 40 | 208.3 | 127 | 10 | 10 | 8 | 22 | 21 | 32 |
| AC-3660 | M36× 1.5 | 60 | 243 | 134 | 11 | 15 | 10 | 35 | 31.3 | 46 |
| Model/Symbol | A | B | C | D | E | F | G | H | I | J |
| AD-1410 | M14× 1.5 | 10 | 113.5 | 73 | 16 | 14.5 | 6 | 4 | 12 | 19 |
| AD-2016 | M20× 1.5 | 16 | 149.5 | 101 | 16 | 16.5 | 8 | 6 | 18 | 26 |
| AD-2525 | M25× 1.5 | 25 | 161.8 | 101 | 17.5 | 18.3 | 10 | 8 | 22 | 32 |
| AD-2540 | M25× 1.5 | 40 | 215.8 | 127 | 17.5 | 31.3 | 10 | 8 | 22 | 32 |
| Model/Symbol | A | B | C | D | E | F | G | H | I | J | K |
| AD-3650 | M36×1.5 | 50 | 242 | 21 | 17 | 146 | 8 | 15 | 35 | 10 | 46 |
| AD-4225 | M42×1.5 | 25 | 186.6 | 34 | 26 | 104.5 | 5 | 15 | 44.5 | 12 | 50 |
| AD-4250 | M42×1.5 | 50 | 241 | 34 | 26 | 134 | 5 | 15 | 44.5 | 12 | 50 |
| AD-4275 | M42×1.5 | 75 | 301.5 | 39 | 26 | 164.5 | 5 | 15 | 44.5 | 12 | 50 |
| Model/Symbol | A | B | C | D | E | F | G | H | I | J | K | L |
| AD-6450 | 2 1/2-UNF(63.5) | 50 | 18.8 | 33 | 247.8 | 146 | 23 | 20 | 77 | 26 | 59 | 20 |
| AD-64100 | 2 1/2-UNF(63.5) | 100 | 18.8 | 33 | 347.8 | 196 | 23 | 20 | 127 | 26 | 59 | 20 |
| AD-64150 | 2 1/2-UNF(63.5) | 150 | 18.8 | 43 | 467.8 | 256 | 23 | 20 | 187 | 26 | 59 | 20 |
| ORDERING CODE | |
| HR | 24 | 15 | |
| HR:Hydraulic speed controller | Body Outer Diameter | Stroke | |
| 24:24mm | |
| |
| 31:31mm | |
| |
| |
| SPECIFICATION |
| MODEL | STROKE | MAX.LOAD | TEMPERATURE |
| mm | kgf | ℃ |
| HR2412 | 12 | 350 | -10~80℃ |
| HR2415 | 15 | 350 | -10~80℃ |
| HR2430 | 30 | 350 | -10~80℃ |
| HR2460 | 60 | 350 | -10~80℃ |
| HR2480 | 80 | 350 | -10~80℃ |
| HR24100 | 100 | 350 | -10~80℃ |
| HR3140 | 40 | 550 | -10~80℃ |
| HR3160 | 60 | 550 | -10~80℃ |
| HR31100 | 100 | 550 | -10~80℃ |
| Model/Symbol | A | B | C | D | E | F | G | H | I | J | K | L | M | N | U |
| HR2412 | 68 | 28 | 24 | 9 | 20 | 32 | 12 | 142 | 38 | 52 | 7 | 17 | 28 | 5 | 2 |
| HR2415 | 85 | 15 | 155 |
| HR2430 | 112 | 30 | 202 |
| HR2460 | 156 | 60 | 277 |
| HR2480 | 199 | 80 | 342 |
| HR24100 | 232 | 100 | 395 |
| HR3140 | 153 | 36 | 31 | 12 | 26 | 42 | 40 | 270 | 44 | 60 | 10 | 21 | 35 | 6 | 2 |
| HR3160 | 189 | 60 | 325 |
| HR31100 | 269 | 100 | 405 |
