Compact Rotary Table Pneumatic Air Cylinder , Linear Actuator Gas Cylinder

Ask Lasest Price
Brand Name :	FLUIDAC or OEM
Certification :	ISO9001
Model Number :	MSQB-20-50A
Price :	USD10--
Delivery Time :	Within 20 days after receiving payment or deposit
Payment Terms :	TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal
Supply Ability :	5000 Pieces Per month

Add to Cart

Product Details
Company Profile

Compact Rotary Table Pneumatic Air Cylinder , Linear Actuator Gas Cylinder

Compact Rotary Table Pneumatic Air Cylinder , Linear Actuator Gas Cylinder

SMC type MSQ Compact rotary table double acting Pneumatic air cylinder Bore size 10mm-200mm e.g. MSQB-20-50A with magnet and rubber buffer or internal shock absorber

Quick Detail:

* MSQ rotary table air cylinder SMC equvalent

* Integration of a table and rotary actuator

* Equipped with angle adjustment mechanism

* Easy alignment when mounting the load and body

* Easy mounting for variety worKpiece
* With large rolling element bearing.
* Pivoting angle adjustment range: 0~190
* With internal shock absorber,External absorber type for option
* Movement in direction of table's radial thrust: 0.01mm or less.
* Small size and light weight.
* Variety of installation options for space-saving.

* W ith self-lubricating bearing,lubrication free

* Pore size 10mm,20mm,30mm,50mm,70mm,100mm,200mm

Specifications:

ORDERING CODE
MSQ	B	20	50	A
MSQ:Standard rotary table cyinder with magnet	B:Basic type	Bore Size	Stroke:10~200mm	Cushion model
		10:10mm		A:With adjustable angle screw(Rubber buffer)
		20:20mm
		30:30mm
		50:50mm
		70:70mm		R: With shock absorber
		100:100mm
		200:200mm

SPECIFICATION
Bore size(mm)		10	20	30	50	70	100	200
working Medium		Filtered compressed air
Motion Pattern		Double action
Pressure Endurance		1.5MPa
Operating pressure range (With adjutable screw)		0.1~1.0MPa
Operating pressure range (Shock absorber)		0.1~0.6MPa
High precision type minimum working pressure		0.2MPa	0.1MPa			━
Ambient Temperature		0~60ºC
Buffer cushioning	With adjutable screw	Rubber bufer
	With shock absorber	Shock absorber internal
Angel adjustable range		0~190°
Maximum rotation		190°
Piston diameter		Ø15	Ø18	Ø21	Ø25	Ø28	Ø32	Ø40
Port size	End port size	M5X0.8	M5X0.8	RC1/8	RC1/8	RC1/8	RC1/8	RC1/8
	Side port size	M5X0.8	M5X0.8	M5X0.8	M5X0.8	M5X0.8	M5X0.8	M5X0.8

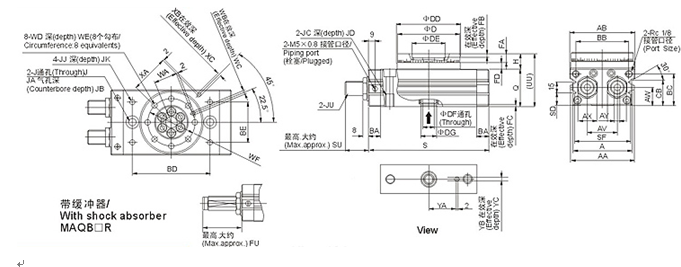

AA	A	AU	AV	AW	AX	AY	BA	BB	BC	BD	BE	CA	CB	D	DD	DE	DF	DG	FA	FB	FC	FD	H	J	JA	JB
10	55.4	50	8.6	20	15.5	12	4	9.5	34.5	27.8	60	27	4.5	28.5	46h9	46h9	20h9	5	15h9	8	4	3	4.5	13	6.8	11	6.6
20	70.8	65	10.6	27.5	16	14	5	12	46	30	67	34	6	30.5	60h9	61h9	28h9	9	17h9	10	6	2.5	6.5	17	8.6	14	8.5
30	75.4	70	10.6	29	18.5	14	5	12	50	32	84	37	6.5	33.5	65h9	67h9	32h9	9	22h9	10	4.5	3	6.5	17	8.6	14	8.5
50	85.4	80	14	38	22	19	6	15.5	63	37.5	100	50	10	37.5	75h9	77h9	35h9	10	29h9	12	5	3	7.5	20	10.5	18	10.5

JC	JD	JJ	JU	P	Q	S	SD	SE	SF	SU	UU	WA	WB	WC	WD	WE	WF	XA	XB	XC	YA	YB	YC	FU
10	M8×1.25	12	M5×0.8	M8×1	M5×0.8	34	92	9	13	45	17.7	47	15	3H9	3.5	M5× 0.8	8	32	27	3H9	3.5	19	3H9	3.5	31.5
20	M10×1.5	15	M6×1	M10×1	M5×0.8	37	117	10	12	60	25	54	20.5	4H9	4.5	M6× 1	10	43	36	4H9	4.5	24	4H9	4.5	34.7
30	M10×1.5	15	M6×1	M10×1	RC 1/8	40	127	11.5	14	65	25	57	23	4H9	4.5	M6× 1	10	48	39	4H9	4.5	28	4H9	4.5	34.7
50	M12×1.75	18	M8×1.25	M14×1.5	RC 1/8	46	152	14.5	15	75	31.4	66	26.5	5H9	5.5	M8× 1.25	12	55	45	5H9	5.5	33	5H9	5.5	51.7

Bore size	AA	AB	A	AV	AW	AX	AY	BA	BB	BC	BD	BE	CB	D	DD	DE	DF	DG	FA	FB	FC	FD	H	J	JA	JB
70	90	92	84	42	25.5	27	8	17	75	44.5	110	57	36	88h9	90h9	46h9	16	22h9	12.5	5	3.5	6	22	10.4	17.5	10.5
100	101	102	95	50	29.5	27	8	17	85	50.5	130	66	42	98h9	100h9	56h9	19	242h9	14.5	6	3.5	12	27	10.4	17.5	10.5
200	119	120	113	60	36.5	36	10	24	103	65.5	150	80	57	116h9	118h9	64h9	24	32h9	16.5	9	5.5	15	32	14.2	20	12.5

Bore size	JC	JD	JJ	JK	JU	Q	S	SD	SF	SU	UU	WA	WB	WC	WD	WE	WF	XA	XB	XC	YA	YB	YC
70	M12×1.75	18	M8×1.25	10	M20×1.5	53	170	18	79	34.2	75	32.5	5H9	5.5	M8×1.25	12.5	67	54	5H9	3.5	39	5H9	3.5
100	M12×1.75	18	M8×1.25	10	M20×1.5	59	189	22	90	34.3	86	37.5	6H9	6.5	M10×1.55	14.5	77	59	6H9	4.5	49	6H9	4.5
200	M16×2	25	M12×1.75	13	M27×1.5	74	240	29	108	40.2	106	44	8H9	8.5	M12×1.75	16.5	90	69	8H9	4.5	54	8H9	6.5
