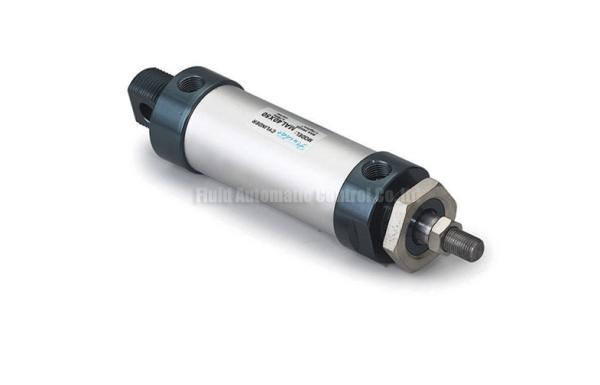

16mm - 40mm Aluminum Alloy Double Acting Pneumatic Air Cylinder With Rubber Cushion

Ask Lasest Price
Brand Name :	FLUIDAC or OEM
Certification :	ISO9001
Model Number :	MAL-CA-25-50-S
Price :	USD3-
Delivery Time :	Within 20 days after receiving payment or deposit
Payment Terms :	TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal
Supply Ability :	10000 Pieces Per month

Add to Cart

Product Details
Company Profile

16mm - 40mm Aluminum Alloy Double Acting Pneumatic Air Cylinder With Rubber Cushion

16-40mm Aluminum Double Acting Pneumatic Air Cylinder With Rubber Cushion

Airtac type Aluminum alloy mini MAL double acting Pneumatic air cylinder Bore size 16mm-40mm e.g. MAL-CA-25-50-S with magnet and adjustable air buffer

Quick Detail:

*Airtac interchange aluminum alloy mini pneumatic air cylinder

*Compact slim,simple design cost effictive

*With magnet, rubber cushion keep from impact,long service life,lower noise

*Piston rod #45(ASTM-1045) steel chrome-plated

*Stainless steel piston rod is available

*With self-lubricating bearing,lubrication free

*Bore size 16mm,20mm,25mm,32mm,40mm

*Cylinder kits and accessories available

Specifications:

ORDERING CODE
MAL	CA	25	100	S	LB
MAL: Double acting standard	Rear cover model	Bore Size	Stroke	A:With Magnet	Mounting Accessories
	Blank:Finshtail Type	16:16mm			Blank:Basic type
MSAL:Single acting					LB:Foot mounting front and rear
		20:20mm			FA:Front flange
MALD:Double piston rod	U:Horizontal Type	25:25mm			U:U type clevis
				Blank: Without magnet	SDB:Back cap swinging type
MALJ:Adjustable stroke		32:32mm
	CM:Round type	40:40mm

SPECIFICATION
Bore size(mm)	16	20	25	32	40
working Medium	Filtered compressed air
Motion Pattern	Double action/Single acting
Pressure Endurance	1.5MPa
Operating pressure range	0.1~1.0MPa
Ambient Temperature	-5~70ºC
Buffer cushioning	Rubber Buffer,Air buffer adjustable optional
Operating Speed	50~800mm/s
Port size	M5X0.8	G1/8	G1/8	G1/8	G1/8

Bore size	A	A1	A2	B	C	D	D1	E	F	G	H	I	J	K
16	104	104	90	38	52	15	15	24	14	11	16	10	5	M6×1
20	131	122	110	40	70	21	12	28	12	16	20	12	6	M8×1.25
25	135	128	114	44	70	21	14	30	14	16	22	17	6	M10×1.25
32	141	128	114	44	70	27	14	30	14	16	22	17	6	M10×1.25
40	165	152	138	46	92	27	14	32	14	22	24	17	7	M12×1.25
Bore size	L		M	P	Q	R	R1	S	U	V	W	X	AR	AX	AY
16	M16×1.5		8	6	12	13	13	6	20	6	/	M5	7	24	27.5
20	M22×1.5		10	8	16	19	12	12	29	8	6	G1/8	7	33	29
25	M22×1.5		12	8	16	19	14	12	34	10	8	G1/8	7	33	29
32	M24×2.0		12	10	16	25	14	15	39.5	12	10	G1/8	8	37	32
40	M30×2.0		12	12	20	25	14	15	49.5	16	14	G1/4	9	47	41
