3 Position 5 Way Manual Directional Control Valve Hand Lever Valve

Ask Lasest Price
Brand Name :	FLUIDAC or OEM
Certification :	ISO9001
Model Number :	VHL-253-06S
Price :	USD8--
Delivery Time :	Within 20 days after receiving payment or deposit
Payment Terms :	TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal
Supply Ability :	20000 Pieces Per month

Add to Cart

Product Details
Company Profile

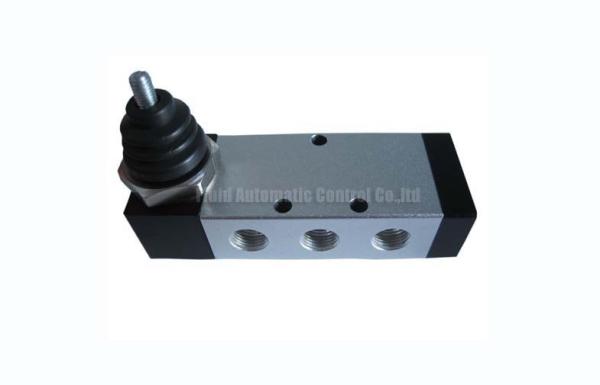

3 Position 5 Way Manual Directional Control Valve Hand Lever Valve

Three Position 5 Way Manual Directional Control Valve Hand Lever Valve
VESTA type VHL series
two positioni Five way,Three Position Five way port size G1/8”,G1/4” e.g VHL-253-06S with spacer sleeve design

Quick Detail:

* VHL series hand lever valve VESTA equvalent
* Two position Five Way and Three Postion Five way
* Spring return type for option
* Big angle safety area enlarged keep from leakage
* Smooth hand operating,small operating power
* Space sleeve design keep from friction to seal,long service life

Applications:

VHL series hand Lever valve manual operated use for fast direction change of anywhere and anytime necessary function required by manual operating,Due to easy and flexible operating,it was widely use in the Pneumatic system

Specifications:

ORDERING CODE
HLV	2	53	06	S
Type	Body Width	Function Type	Port Size	Type
HLV:VESTA type Hand Lever Valve	2:30mm	52:Two Position Five Way	06:G1/8"	S:Spring Return
HLV:VESTA type Hand Lever Valve	2:30mm	52:Two Position Five Way	08:G1/4"	S:Spring Return

SPECIFICATION
Model no	HLV Series
Working Medium	Compressed 40 Micron Filtered Air
Body Material	Aluminum Alloy
Position And Way Numbers	Two Position-Five Way Three Postion Five Way
Port Size	G1/8" G1/4"
Motion Pattern	Direct Acting
Working Pressure	0~1.0MPa
Max.Pressure Resistance	1.2MPa
Operating Temperature	0~60℃

Pneumatic Valve,Hand Valve,Manual Operated valve
