2 Position 5 Way Compact SFV Foot Pedal Valve For Pneumatic Automation System

2 Position 5 Way Compact SFV Foot Pedal Valve For Pneumatic Automation System

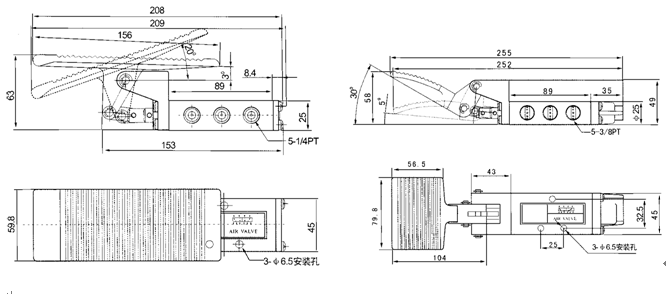

45mm body width SFV Series two position five way foot pedal valve with spring return and position locking port size PT1/4 PT3/8 e.g SFV-402S SUNRISE Equvalent

Quick Detail:

* SFV series Foot Pedal valve SUNRISE interchangeable
* Two position Five Way
* Spring return type or postion locking type for option
* Compact design,small volume easy for installation and Operating
* Smooth stroke travelling,Sensitive acting respond
* Heavy duty design,long service life

Applications:

SFV series foot pedal valve manual operated use for fast direction change of anywhere and anytime necessary function required by manual operating,Due to compact volume,easy and flexible operating,it was widely use in the Pneumatic system

Specifications:

ORDERING CODE
SFV	4	02	S
Type	Body Width	Port Size	Type
SFV:SUNRISE Type Two position Five Way Foot Pedal valve	4:45mm	02:PT1/4"	S:Spring Return

		03:PT3/8"	Blank:Standard Type

SPECIFICATION
Model no	SFV402	SFV402S	SFV403	SFV403S
Working Medium	Compressed 40 Micron Filtered Air
Body Material	Aluminum Alloy
Position And Way Numbers	Two Position-Five Way
Port Size	PT1/4"		PT3/8"
Motion Pattern	Direct Acting
Working Pressure	0.15~0.9MPa
Operating Temperature	0~70℃

Pneumatic Valve,Foot Valve,Manual Operated valve
