Hand Lever Pneumatic Directional Control Valve Five Way PT1/4"

Ask Lasest Price
Brand Name :	FLUIDAC or OEM
Certification :	ISO9001
Model Number :	SHV-402S
Price :	USD4--
Delivery Time :	Within 20 days after receiving payment or deposit
Payment Terms :	TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal
Supply Ability :	20000 Pieces Per month

Add to Cart

Product Details
Company Profile

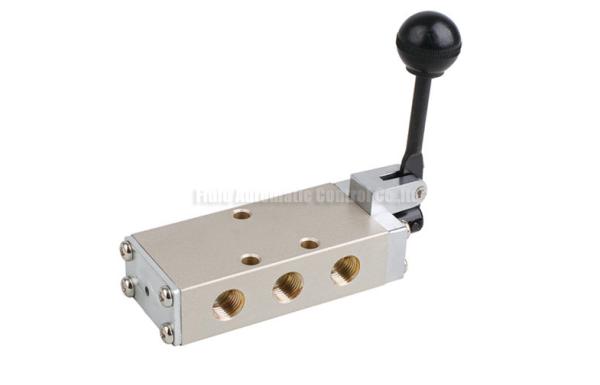

Hand Lever Pneumatic Directional Control Valve Five Way PT1/4"

Hand Lever Pneumatic Directional Control Valve Five Way PT1/4"
45mm body width SHV Series two position five way three position five way hand lever valve with spring return and position locking port size PT1/4 PT3/8 e.g SHV-402S SUNRISE Equvalent with aluminum alloy body material

Quick Detail:

* SHV series hand lever valve SUNRISE equivalent
* Two position Five Way,Three Position Five way
* Spring return type or postion locking type for option
* Big angle safety area enlarged keep from leakage
* Smooth hand operating,small operating power
* Heavy duty design,long service life

Applications:

SHV series hand Lever valve manual operated use for fast direction change of anywhere and anytime necessary function required by manual operating,Due to easy and flexible operating,it was widely use in the Pneumatic system

Specifications:

ORDERING CODE
SHV	4	02	S
Type	Body Width	Port Size	Type
SHV:SUNRISE Type Two position Five Way Hand Lever valve	4:45mm	02:PT1/4"	S:Spring Return

		03:PT3/8”	Blank:Standard Lock type

SPECIFICATION
Model no	SHV402	SHV402S	SHV403	SHV403S
Working Medium	Compressed 40 Micron Filtered Air
Body Material	Aluminum Alloy
Position And Way Numbers	Two Position-Five Way
Port Size	PT1/4"		PT3/8"
Motion Pattern	Direct Acting
Working Pressure	0.15~0.9MPa
Operating Temperature	0~70℃

Pneumatic Valve,Hand Valve,Manual Operated valve
