25mm Direct Acting Pneumatic Toggle Valve , 1.2Mpa Manual Operated Valve

Ask Lasest Price
Brand Name :	FLUIDAC or OEM
Certification :	ISO9001
Model Number :	HTV322N6
Price :	USD5--
Delivery Time :	Within 20 days after receiving payment or deposit
Payment Terms :	TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal
Supply Ability :	20000 Pieces Per month

Add to Cart

Product Details
Company Profile

25mm Direct Acting Pneumatic Toggle Valve , 1.2Mpa Manual Operated Valve

25mm Direct Acting Pneumatic Toggle Valve , 1.2Mpa Manual Operated Valve
22mm,25mm body width METALWORK 70 series hand toggle valve two position three way two position five way port size G1/8 G1/4 e.g HTV322N6

Quick Detail:

* HTV hand Toggle valve Metalwork interchangeable
* Two position Five Way,two position three way
* Port Size G1/8” G1/4”
* Smooth stroke travelling,Sensitive acting respond
* Multi-mounting position,easy for installation
* Stable design,long service life cycle

Applications:

HTV series Hand Toggle valve manual operated use for fast direction change of Anywhere and anytime necessary function required by manual operating,Due to compact volume,easy and flexible operating,it was widely use in the Pneumatic system

Specifications:

ORDERING CODE
HTV	322N	6
Type	Function Type and Body Width	Port Size
HTV:METALWORK 70 Series Hand Toggle Valve	322N: Two Position Three Way,Body Width 22mm	6:G1/8"
	332N: Two Position Three Way,Body Width 25mm	6:G1/8"
	522N: Two Position Five Way,Body Width 22mm	8:G1/4"
	532N: Two Position Five Way,Body Width 25mm	8:G1/4"

SPECIFICATION
Model no	HTV Series
Working Medium	Compressed 40 Micron Filtered Air
Body Material	Aluminum Alloy
Position And Way Numbers	Two Position Three Way /Two Position-Five Way
Port Size	G1/8" G1/4"
Motion Pattern	Direct Acting
Working Pressure	0~1.0MPa
Operating Temperature	–5~60℃

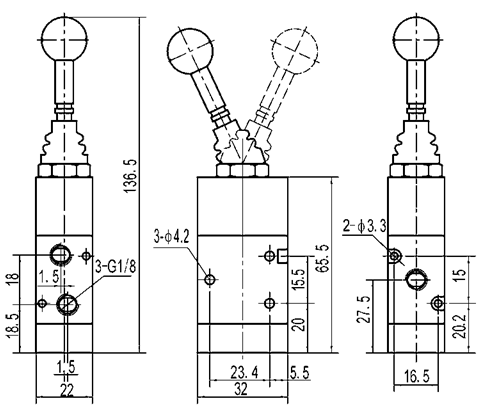

HTV322N6

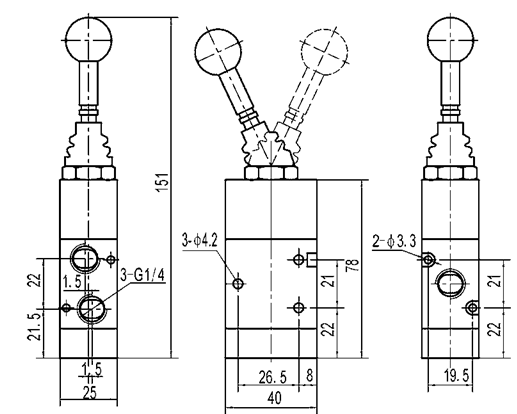

HTV332N8

HTV522N6

HTV532N8

Pneumatic Valve,Hand Toggle valve ,Manual Operated valve
