Pneumatic Air Cylinder Accessories,Air Cylinder Mounting Bracket Auxiliary

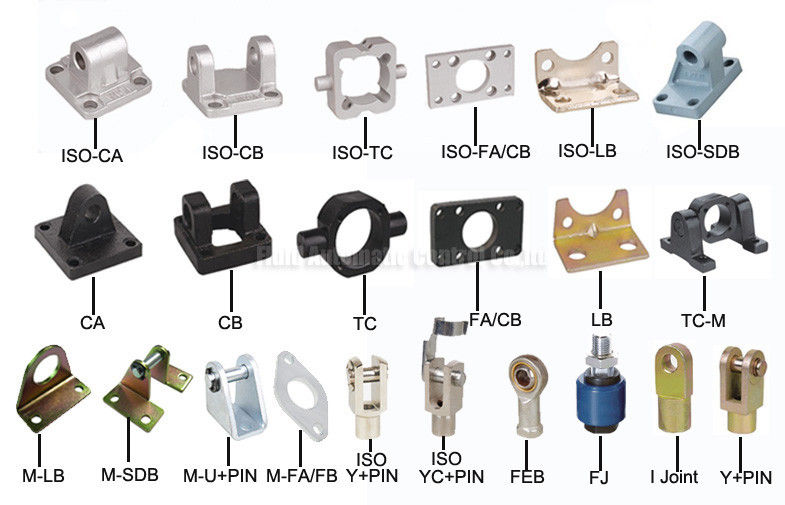

Pneumatic Air cylinder Accessories CA Single Earring,CB Double Earring,LB Foot Bracket,FA/FB Flange,Y Clevis,Eye Fish Bearing,Float Fitting,I Fitting,SDB Earring,Central Turnion,U clevis
Quick Detail:
* Pneumatic air cylinder accessories
* Various asccessories for mounting and functional application
* Covering full range of air cylinder size from Dia.8mm~dia.400mm
* Aluminum material and casting steel material available
* Easy and fast for operatating to mount onto cylinders
* With good shape by the quality surface treatment
* Special air cylinder accessories can be customize for specific application
Applications:
Pneumatic air cylinder accessories are the supporting parts for air cylinder to realize the fixture mounting and functional application joint with air cylinder and workpieces.
Specifications:
| ORDERING CODE |
| ISO | CB | 40 |
| ISO:ISO Cylinder Accessories | Type | Bore Size |
| CB:Double earring | 6:6mm |
| 8:8mm |
| CA:Single earring | 10:10mm |
| 12:12mm |
| Y+PIN:Y Joint with Pin | 16:16mm |
| 20:20mm |
| YC+PIN:Y Clevis with Pin | 25:25mm |
| 32:32mm |
| LB:Foot bracket | 40:40mm |
| 50:50mm |
| FA/FB:Front Flange/Rear Flange | 63:63mm |
| M:Mini cylinder Accessories | 80:80mm |
| SDB:T shape Earring | 100:100mm |
| 125:125mm |
| FJ:Float Joint | 160:160mm |
| Blank:Other Standard Cylinder Accessories | FEB:Fish Eye Bearing | 200:200mm |
| TC:Central Turnnion | 250:250mm |
| TC-M:Central Turnion with bracket | 320:320mm |
| U:U type clevis | 400:400mm |
| I: I Joint |
LB foot mounting of ISO Air cylinder accessories
Model no:ISO-LB-32~200(Bore size 32mm~200mm)
Material:steel
Surface treatment:Electroplating
| Bore Size | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 |
| AA | 158 | 179 | 190 | 209 | 248 | 258 | 290 | 340 | 380 |
| AC | 142 | 161 | 170 | 185 | 210 | 220 | 250 | 300 | 320 |
| AD | 8 | 9 | 10 | 12 | 19 | 19 | 20 | 20 | 30 |
| AE | 47 | 53 | 63 | 75 | 95 | 115 | 140 | 180 | 220 |
| AF | 32 | 36 | 45 | 50 | 63 | 75 | 90 | 115 | 135 |
| AG | 24 | 28 | 32 | 32 | 41 | 41 | 45 | 60 | 70 |
| AH | 32 | 36 | 45 | 50 | 63 | 71 | 90 | 115 | 135 |
| AP | 7 | 9 | 9 | 9 | 12.5 | 14.5 | 16.5 | 18.5 | 24 |
| AT | 4 | 4 | 4 | 4 | 5 | 5 | 8 | 8 | 9 |
FA/FB Flange/Rear Frange of ISO Air Cylinder
Model no:ISO-FA/FB-32~200(Bore size 32mm~200mm)
Material:Aluminum Alloy
Surface Treatment:Painting
| Bore size | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 |
| AJ | 11 | 11 | 13 | 13 | 17 | 17 | 19 | 24.5 | 25 |
| AK | 7 | 7 | 9 | 9 | 11 | 11 | 13 | 16.75 | 17 |
| BA | 30.5 | 35.5 | 40.5 | 45.5 | 45.5 | 55.5 | 60.5 | 65.5 | 75.5 |
| BB | 10 | 10 | 12 | 12 | 16 | 16 | 20 | 20 | 25 |
| BC | 47 | 53 | 65 | 75 | 95 | 115 | 140 | 180 | 220 |
| BD | 32 | 36 | 45 | 50 | 63 | 75 | 90 | 115 | 135 |
| BE | 80 | 90 | 110 | 125 | 154 | 186 | 224 | 280 | 320 |
| BF | 64 | 72 | 90 | 100 | 126 | 150 | 180 | 230 | 270 |
| BH | 4 | 4 | 6 | 4 | 6 | 6 | 8 | 8 | 12 |
| BP | 7 | 9 | 9 | 9 | 12.5 | 14.5 | 16.5 | 18.5 | 24 |
| T | 32.5 | 38 | 46.5 | 56.5 | 72 | 89 | 110 | 140 | 175 |
CA Single Earring of ISO Air Cylinder
Model no:ISO-CA-32~200(Bore size 32mm~200mm)
Material:Aluminum Alloy
Surface Treatment:Painting
| Bore Size | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 |
| S | 47 | 53 | 65 | 75 | 95 | 115 | 140 | 180 | 220 |
| T | 32.5 | 38 | 46.5 | 56.5 | 72 | 89 | 110 | 140 | 175 |
| DC | 22 | 25 | 27 | 32 | 36 | 41 | 50 | 55 | 60 |
| DD | 9 | 12 | 12 | 15 | 15 | 20 | 25 | 30 | 30 |
| DE | 10 | 12 | 12 | 16 | 16 | 20 | 25 | 30 | 30 |
| DJ | 13 | 16 | 17 | 22 | 22 | 27 | 33 | 35.5 | 36 |
| DQ | 25.8 | 27.8 | 31.7 | 39.7 | 49.7 | 59.7 | 69.7 | 89.7 | 89.7 |
CB Double Earring of ISO Air Cylinder
Model no:ISO-CB-32~200(Bore size 32mm~200mm)
Material:Aluminum Alloy
Surface Treatment:Painting
| Bore Size | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 |
| CC | 22 | 25 | 27 | 32 | 36 | 41 | 50 | 55 | 60 |
| CD | 9 | 12 | 12 | 15 | 15 | 20 | 25 | 30 | 30 |
| CE | 10 | 12 | 12 | 16 | 16 | 20 | 25 | 30 | 30 |
| CJ | 13 | 16 | 17 | 22 | 22 | 27 | 31 | 35.5 | 36 |
| CP | 26 | 28 | 32 | 40 | 50 | 60 | 70 | 90 | 90 |
| CT | 45 | 52 | 60 | 70 | 90 | 110 | 130 | 170 | 170 |
| PAI | 51 | 59 | 67 | 77 | 97 | 119 | 139 | 181 | 181 |
| PBI | 45.5 | 52.5 | 60.5 | 70.5 | 90.5 | 110.5 | 130.5 | 170.5 | 170.5 |
| S | 47 | 53 | 65 | 75 | 95 | 115 | 140 | 180 | 220 |
| T | 32.5 | 38 | 46.5 | 56.5 | 72 | 89 | 110 | 140 | 175 |

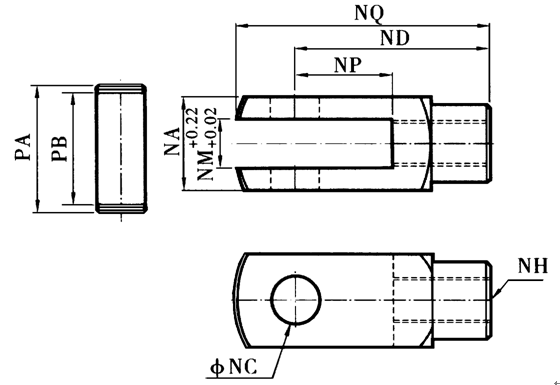

Y+Pin Y joint with Pin or Y clevis with Pin of ISO Air Cylinder
Model no:ISO-Y+PIN-32~200(Bore size 32mm~200mm)
Material:Carbon steel
Surface Treatment:Nickle plated or Zinc Galvanized
| Bore size | NA | NC | ND | NH | NP | NQ | PA | PB |
| 32 | 19 | 10 | 40 | M10×1.25 | 20 | 52 | 26.2 | 20 |
| 40 | 25.4 | 12 | 48 | M12×1.25 | 24 | 62 | 32.8 | 26.5 |
| 50 | 32 | 16 | 64 | M16×1.5 | 32 | 83 | 39.3 | 33 |
| 63 | 32 | 16 | 64 | M16×1.5 | 32 | 83 | 39.3 | 33 |
| 80 | 44.4 | 20 | 80 | M20×1.5 | 40 | 105 | 53.3 | 45 |
| 100 | 44.4 | 20 | 80 | M20×1.5 | 40 | 105 | 53.3 | 45 |
| 125 | 55 | 30 | 110 | M27×2.0 | 54 | 148 | 64 | 55.6 |
| 160 | 70 | 35 | 144 | M36×2.0 | 72 | 191 | 80 | 70.6 |
| 200 | 70 | 35 | 144 | M36×2.0 | 72 | 191 | 80 | 70.6 |

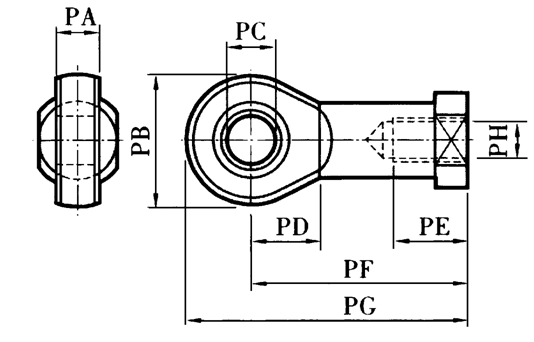

FEB Fish Eye Bearing joint of ISO Air Cylinder
Model no:ISO-FEB-32~200(Bore size 32mm~200mm)
Material:Bearing Steel and Brass
Surface Treatment:Nickle plated and Zinc Galvanized
Thread Direction:Left or Right direction
Lubrication:Self-lubrication or with oil feed nozzle
| Bore Size | PA | PB | PC | PD | PE | PF | PG | PH |
| 32 | 14 | 28 | 10 | 15 | 20 | 43 | 57 | M10×1.25 |
| 40 | 16 | 32 | 12 | 17 | 22 | 50 | 66 | M12×1.25 |
| 50 | 21 | 42 | 16 | 22 | 28 | 64 | 85 | M16×1.5 |
| 63 | 21 | 42 | 16 | 22 | 28 | 64 | 85 | M16×1.5 |
| 80 | 25 | 50 | 20 | 26 | 33 | 77 | 102 | M20×1.5 |
| 100 | 25 | 50 | 20 | 26 | 33 | 77 | 102 | M20×1.5 |
| 125 | 37 | 70 | 30 | 36 | 51 | 110 | 145 | M27×2.0 |
| 160 | 43 | 80 | 35 | 41 | 56 | 125 | 165 | M36×2.0 |
| 200 | 43 | 50 | 35 | 41 | 56 | 125 | 165 | M36×2.0 |
