0-1.0Mpa Waterproof Micro Pressure Transducer Stainless Steel Body

PTP708 series pressure transducer/sensor,presure range 0~1.0Mpa with stainless steel body and sensor material thread size 1/2-20UNF,M14×1.5,M20×1.5,M22×1.5 or according requirement

Quick Detail:

* PTP708 Series pressure transducer

* fully stainless steel seal welding construction

* pressure range 0～1KPa～10KPa～100KPa～1(MPa)

* working medium temperature -20～85℃

* thread connection 1/2-20UNF,M14×1.5,M20×1.5,M22×1.5

* excellent moisture-resistance

* good peformance of medium compatibility

* stable design,long service life cycle

Applications:

Micro-pressure transducer use the imported pressure sensor chip, completely stainless steel seal welding construction,with excellent moisture-resistance and medium compatibility,applicable to measuring and controlling Micro-pressure of Medium

Specifications:

1,Pressure Range: 0～1KPa～10KPa～100KPa～1(MPa)

2, Synthesize Precise: 0.2%FS,0.5%FS,1.0%FS

3, Output: 4～20mA(2 wire),0～5V,1～5V,0～10V(3 wire)

4, Supply Votalge: 24DCV(9～36DCV)

5, Medium and ambient Temp: -20～85℃

6, Resistance load: Currency Output:≤800Ω,Voltage Output:＞50KΩ

7, Resistance Insulation: ＞2000MΩ (100VDC)

8, Protection Class: IP65

9, Long Term Stability: 0.1%FS/YEAR

10, Vibration Affect: Mechanical Vibration Frequence within 20Hz～1000Hz,Output Variation ＜0.1%FS

11, Electric conneciton(signal connection): 4 core shield wire,4 core aviation Plug-in,wire-strain nuts

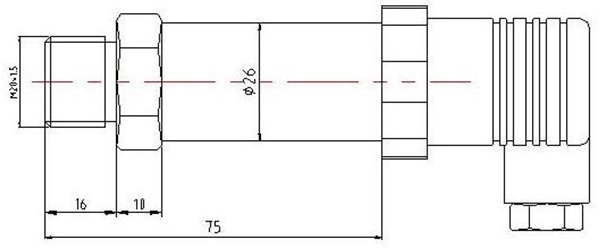

12, Mechanical connection(Thread connection): 1/2-20UNF,M14×1.5,M20×1.5,M22×1.5 etc,other connection according to requirement

Pressure transducer,pressure sensor,micro-pressure transducer
