High Frequency Pneumatic Vibrator Air Powered Turbine Vibrator

    Buy cheap High Frequency Pneumatic Vibrator Air Powered Turbine Vibrator from wholesalers

    Buy cheap High Frequency Pneumatic Vibrator Air Powered Turbine Vibrator from wholesalers
    • Buy cheap High Frequency Pneumatic Vibrator Air Powered Turbine Vibrator from wholesalers

    High Frequency Pneumatic Vibrator Air Powered Turbine Vibrator

    Ask Lasest Price
    Brand Name : FLUIDAC or OEM
    Certification : ISO9001
    Model Number : GT8
    Price : USD20--
    Delivery Time : Within 20 days after receiving payment or deposit
    Payment Terms : TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal
    Supply Ability : 5000 Pieces Per month
    • Product Details
    • Company Profile

    High Frequency Pneumatic Vibrator Air Powered Turbine Vibrator


    High Frequency Pneumatic Vibrator Air Powered Turbine Vibrator

    GT-16 pneumatic turbine vibrator with body material aluminum alloy, inlet and exhuasting port size 1/4”G or NPT,working frequency 24000cycles/Minute at 6Bar,centrifugal force 3160N at 6Bar


    Quick Detail:


    * GT-16 Pneumatic turbine vibrator

    * Body material Extruded Aluminium Alloy

    * Body material stainless steel available

    * Inlet and exhuasting port size 1/4”G,NPT

    * Working frequence and centrifugal force can be adjustable by air pressure

    * High frequence up to 24000cycles/Minute at 6 Bar

    * Centrifugal force up to 3160N at 6Bar

    * Low noise 60~75Dba

    * High temperature-resistance up to 120℃

    * Immediately start,stop,fast response

    * Easy to operate,safety application

    * Easy to change bearing parts

    * Lubrication free


    Applications:


    GT-16 Pneumatic turbine vibrator used widely in feed material conveyor,vibration screening,vibrating hopper,packaging filling,foundry sand mold vibration etc

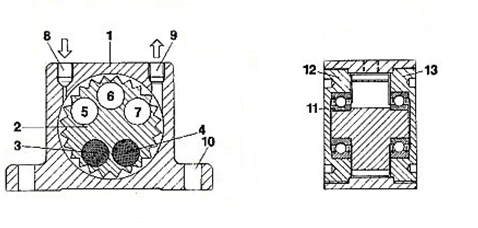

    Specifications:


    1, Extruded Aluminium Alloy Body
    2, Hard Coated Aluminium Turbine Wheel
    3-4, High Density Mass Positive Movement
    5-7, Cavities Giving Negative Movement
    8,Air Inlet Port
    9,Air Exhausting port
    10,Base Mounting Holes
    11,Special Pre-Lubricated Matching Sealed Bearings
    Hard Coated Aluminium Endplates
    12,With Left direction Thread
    13,With Right direction Thread


    Model

    Frequency V.P.M

    Centrifugal force

    Air consumption L/ Minute

    2 Bar

    4 Bar

    6 Bar

    2 Bar

    4 Bar

    6 Bar

    2 Bar

    4 Bar

    6 Bar

    29 PSI

    58 PSI

    87 PSI

    N

    N

    N

    Ltr.

    Ltr.

    Ltr.

    GT-8

    36000

    42000

    46000

    990

    2060

    2910

    48

    75

    152

    GT-10

    27500

    35000

    37500

    840

    1390

    2400

    GT13

    26000

    30000

    33000

    1400

    2440

    3730

    125

    210

    280

    GT-16

    17000

    21500

    24000

    1220

    2090

    3160

    GT20

    17000

    20000

    23000

    2170

    4040

    5520

    188

    315

    465

    GT-25

    12000

    15500

    17000

    2120

    3510

    5070

    GT32

    13000

    14000

    16000

    3380

    5430

    7540

    335

    520

    755

    GT-36

    7800

    10000

    13000

    3290

    5360

    7190

    GT40

    7500

    8800

    9500

    4300

    7300

    9800

    428

    680

    960

    GT-48

    5800

    7500

    9700

    4900

    7700

    10500

    GT-60

    4758

    6530

    8515

    5700

    9800

    11150







    Model

    A

    Width

    C

    D

    E

    F

    G/H

    Weight

    mm

    mm

    mm

    mm

    mm

    mm

    Thread(G)

    kg

    GT-8

    50

    33

    86

    68

    12

    7

    1/8"

    0.25

    GT-10

    0.255

    GT-13

    65

    42

    113

    90

    16

    9

    1/4"

    0.565

    GT-16

    0.58

    GT-20

    80

    56

    128

    104

    16

    9

    1/4"

    1.09

    GT-25

    1.12

    GT-32

    100

    73

    160

    130

    20

    11

    3/8"

    2.2

    GT-36

    2.3

    GT-40

    120

    83

    194

    152

    24

    17

    3/8"

    3.69

    GT-48

    3.89

    GT-60

    140

    95

    240

    195

    30

    21

    3/8"

    5.59

    Pneumatic vibrator,turbine vibrator,Gear vibrator
